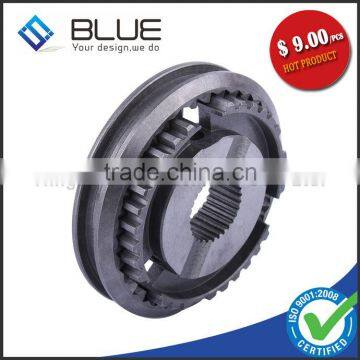

Isuzu Transmission Gear

Product Details

Product Description

Product Description
Specifications
Isuzu Transmission Gear
1. ISO 9001:2008
2. Customized service
3. OEM & ODM capacity
4. Non-standard parts provide
Isuzu Transmission Gear

SAMPLE INFORMATION
Sample QTY	1 PCS
Sample Cost	For Free
Delivery Time	3 Workdays
Courier Transportion	Around 3 Workdays

GEAR PARAMETERS
MAIN PARAMETER	SYMBOL	SIZE (mm)
Module	m	2.5
Teeth	z	36
Pressure Angle	a	30°
Tip Diameter	da	110
Part No.	BG002
Net Weight	552 g
Material	20CrMnTi
Surface Finish	Carburizing treatment
Hardness	HRC 58~64
Tooth Accuracy	ISO/GB Class 7

More Pictures:

PRODUCTS RANGE
MATERIAL	Carbon Steel	SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214L…..
	Alloy Steel	20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5……
	Brass/Bronze	HPb59-1, H70, CuZn39Pb2, CuZn40Pb2,C38000, CuZn40……
MACHINING PROCESS	Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping
MODULES	1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5……….8.0
TOLERANCE CONTROL	Outer Diameter	±0.005 mm
	Length Dimension	±0.05 mm
TEETH ACCURACY	DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0
HEAT TREATMENT	Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding……
SURFACE TREATMENT	Blacking, Polishing, Anodization, Chrome plating, Zinc plating, Nickel plating……
STANDARD	European , American or Britain standard……

PLANT CAPACITY
MACHINE NAME		MACHINE QUANTITY		BRAND & FEATURE
Gear Hobbing Machine		14 Units		CHINA CHMTI
Gear Shaving Machine		4 Units		CHINA N2M
Gear Shaping Machine		7 Units		CHINA N2M
Gear Grinding Machine		21 Units		Shanghai Machine Tool
Chamfering machine		2 Units		CHINA N2M
Drilling Machine		3 Units		Hangzhou Xihu Driling Machine Co., Ltd
CNC Milling Machine		2 Units		Germany Hans
Gear Shape detector		1 Unit		Harbin Measuring & Cutting Tool Group
Heat Treatment Machine		1 Unit		Jiangsu Standard Electric Furnace Co., Ltd.
PLANT PICTURES

---
