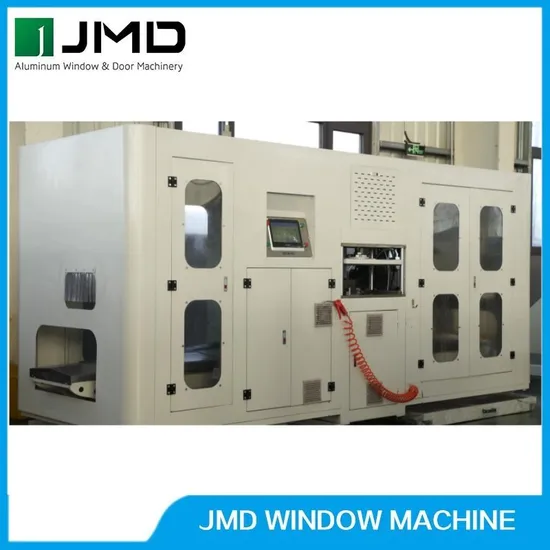

7 Axies CNC Aluminum End Milling Machine/Aluminum Window CNC Milling Machine

Product Description

7 -Axis CNC Aluminum End Milling Machine LJX3S-300

1.Machine Introduction:
- Usage: Cutting or milling the ends of aluminum curtain wall and window and door profiles
- Equipped with 3 cutters: upper cutter is for end milling and lower cutter is for cutting.
- Processes multiple pieces of mullion profiles per cycle
- High-precision linear motion rack slider and ball screw ensure stable operation, high positioning and processing accuracy
- High-quality high-speed electric spindle ensures processing stability, stable rotation, low noise,
and strong cutting ability
- Programs for different aluminum profiles can be saved, making it convenient to use next time 2.Technical Parameter
- Power supply: 380V, 3Phase, 50Hz
- Milling & cutting spindle power: 3.0kW
- Total power: 18kW
- Milling spindle rotating speed: 3000rpm
- Working air pressure: 0.5~0.8MPa
- Air consumption: 80.0L/min
- Quantity of profile processed per cycle: 4~5pcs
- Max. Section height of profile applied to: 145mm
- Min. Length of profile applied to: 240mm
- Processing tolerance: ±0.1mm
- Overall size: 4.2m*3m*2.1m
- Weight: 1870Kg

3. Detail Cutting Machine Photos
4.Associated Aluminum Machine

5.Our Team
5.Our Factory

Shandong JMD Machinery Co., Ltd is a leading manufacturer specializing in design and manufacturing of aluminum and wood window & door machines in China.Established in 1999, JMD started the business of supplying machining parts for window machine manufacturers.
Few years later, we built our own R & D team and started to produce the complete aluminum window & door equipment such as double mitre saw, corner crimping machine, copy router, end milling machine, corner connector cutting machine and aluminum punching machine, etc. In 2012, JMD became one of the top-10 suppliers of aluminum window & door machines in China.
In 2013, JMD designed the first generation of aluminum profile automatic cutting machine. Now, the 3rd generation, model LJGS-CNC-500x6000 is one of the most successful aluminum profile cutting machine in China.
In 2014, JMD launched the first wooden window production line in China. From then on, Chinese window plants started to make first-class Aluminum-clad wood windows and doors with machines of Chinese brand.
Today, JMD has 248employees and over 130sets of sophisticated processing equipment( including CNC processing center, milling machine, grinding machine, planners, lathe machine, wire cutting machine, welding machine and bending machine, etc. Our well-trained after-sales team and large parts warehouse support us to provide the best service in shortest time.
We'll always combine a love for machines with creativity, an understanding of windows & doors, and a passion for discovering better ways to do everyday tasks. Look forward to working with you soon!
6.Our Clients
7.Why Us
1. We have more than 20 years of production and manufacturing experience in doors and windows machiniery
2. Top 3 door and window machine manufacturers in China
3.248 staffs professional team
4. Export to more than 40 countries
5 Covering an area of 300 mu
6. More than 3000 sets production per year
7. Cutting center Leading brand in China
8.We accept certification BV/CAS/SGS/CE ,etc.
8.Delivery

---
