Water Solenoid Valve -1.0MPa Available

Negotiable 10 Pieces (MOQ)

Basic Info.

Model NO.

Actuator

Electric

Connection Form

Thread

Type

Direct Acting

Material

Stainless Steel

Pressure

Ordinary Pressure

Valve Structure

Direct Action Diaphragm Structure

Power Supply

AC220V or DC24V/According to Customer Requirements

Usage

Emptying, Drain, Flow Control

Standard

Application

Industrial Usage, Water Industrial Usage, Household Usage

Customizable

1. Waterproof 2. Explosion Proof 3. Vacuum Use

Sealing

NBR or FKM

Transport Package

Based on Customer Needs

Specification

DN15-DN65

Trademark

ChiSin

Origin

China

HS Code

848120109

Production Capacity

5000pieces/Months

Product Description

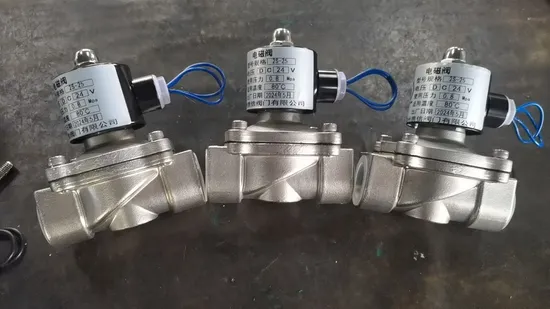

2W series water solenoid valve - provides a one-year warranty
Sealing: The valve adopts a diaphragm type seal, which is usually sealed with nitrile rubber. Fluorine rubber seals can be replaced according to customer needs.
Optional: Can be made into normally open, explosion-proof, waterproof, and vertical installation types.
Media: water, oil, gas, vacuum (to be informed in advance) (≤ 20CST)
Operating temperature: -5-80 ºC
Work pressure: normally closed 0-1.0MPA, normally open 0-0.8MPA

Model	connection method	Length	High
2W-15	G 1/2''	64	108
2W-20	G 3/4''	68	115
2W-25	G 1''	94	123
2W-32	G 1 1/4''	100	135
2W-40	G 1 1/2''	120	165
2W-50	G 2''	130	175
2W-65	G 2 1/2''
