Basic Info.
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Product Name
Share Plough
Transport Package
Iron Frame Net Box
Production Capacity
1000sets/Year
Product Description

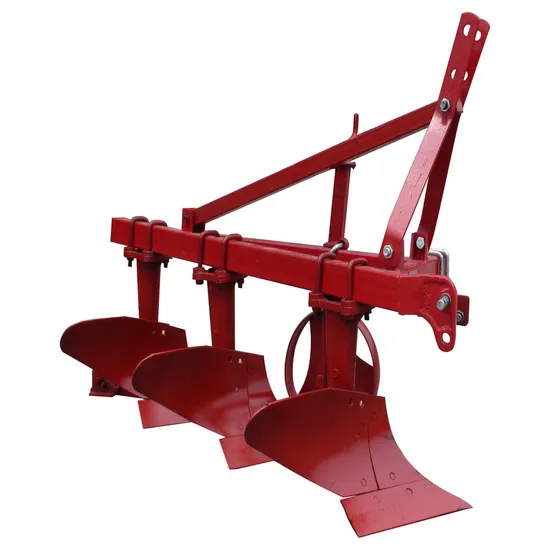

1L series share plow is a four-wheel tractor mounted plow, mainly used for plowing loam, the sand loam , cultivated and dry land.
Advantages: This tractor farm plow has good efficiency The mouldboard plow is in simple adjustment Wide scope of application The width of plow share could be 20cm,25cm,30cm,35cm. Material of plough tip is 65Mn steel Working depth could be adjusted
| Model | units | 1L-220 | 1L-320 | 1L-420 | 1L-520 | 1L-225 | 1L-325 | 1L-425 | 1L-525 |
| Working width | mm | 400 | 600 | 800 | 1000 | 500 | 750 | 1000 | 1250 |
| Working depth | mm | 200~250 |
| Number of bottoms | | 2 | 3 | 4 | 5 | 2 | 3 | 4 | 5 |
| Total weight | kg | 64 | 100 | 130 | 170 | 125 | 170 | 240 | 270 |
| Matched power | hp | 15~25 | 25~35 | 35~45 | 50~60 | 25 | 40 | 50 | 65 |
| Linkage | | Three-point I suspension type | Three-point suspension II type | Three-point suspension I type | Three-point suspension II type |
>>
