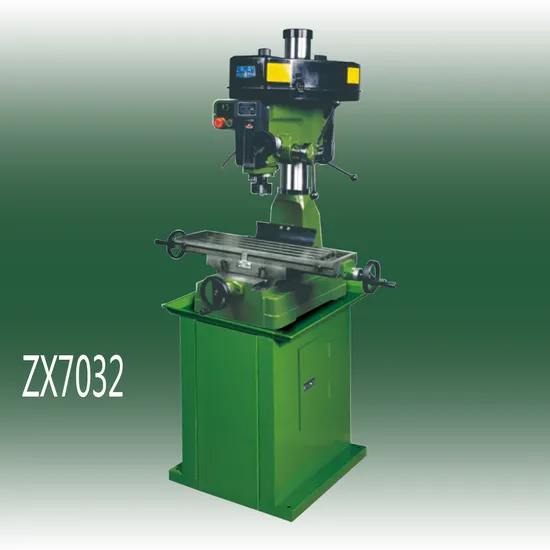

Zx7032 Small Bench-Type Milling and Drilling Machine Benchtop Milling Machine for Sale

US$1,950.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZX7032
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
1500W
Max Drilling Capacity
31.5 mm
Transport Package
Wooden Case
Specification
108x77x120cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300

Product Description

Model ZX7020 ZX7025 ZX7032
Max.drilling capacity 20mm 25mm 31.5mm
Width of face milling 50mm 63mm 80mm
Diameter of vertical milling 12mm 13mm 22mm
Spindle travel 115mm 90mm 130mm
Distance spindie axis to column surface 240mm 202mm 202mm
Max.distance spindle nose to worktable 450mm 380mm 450mm
Spindle taper MT.2 MT.3 MT.3 or R8
Spindle speeds range 215-2000rpm 100-2150rpm 100-2150rpm
Spindle speeds 5 12 12
Dimension of table 590x190mm 585x190mm 730x210mm
Travel of worktable 370x145mm 370x145mm 500x175mm
Overall height 1000mm 930mm 1100mm
Headstock travel 350mm 300mm 315mm
Motor 750W 750W 1500W
G.WJN.W. 220/180kg 245/220kg 310/285kg
Ship measurement 93x93x100cm 76x97x103cm 108x77x120cm
