PP Big Bag/Jumbo Bag/Woven Bag LDPE Agriculture Film/LLDPE Warpping Film HDPE Bottle/Pet Bottles Washing Recycling Machine Crusher

Product Description

Pet Plastic Flakes/Bottle Recycling Washing Line

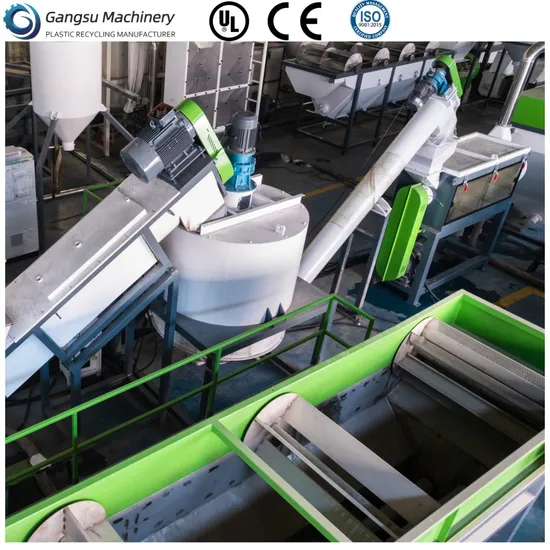

PET washing line/PET bottle washing line/PET flake washing line (including crushing, washing, drying) Application for PET washing line: This recycling line is composed of garbage separation (automatic & manual), bottle & flake crushing, cold & hot washing & cleaning, flake dewatering & drying, dust & label removal, packing, etc. Basically the standard process for PET bottle recycling line design as below: De-baling(bale opener)------ Label Scrapping(lable remover)-------- Persorting------Bottle Pre-washing ------ Manual Sorting and Metal Detecting-----Wet Grinding(crusher)-------Gravity Separation(floating washer)-------Chemical Washing for PET Flakes(Hot washer)-------High speed friction washer ------- Floating washing tank ------- Rinsing(clean water spraying)--------Drying--------Packing/storage hopper Feature for PET washing line: 1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 500-6000kg/hr 2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop. 3. All parts contacting with plastic material and water are made of high-quality 304 or 316 stainless steel; Ensure no second pollution to flakes. Product Parameters

Capacity(KG/H)	Power(KW)	Size(m2)	People
500	220	400	8
1000	500	750	10
2000	700	1000	12
3000	900	1500	12
6000	1200	2500	16

Recycling Process
Product Description
Belt conveyor
Used to convey PET bottles to the crusher in the back-end equipment
Plastic crusher
Used for crushing PET bottles into 8-18mm flakes
Screw feeder
This equipment is used to transport the flakes to the rear equipment
Floating tank
It is used to rinse PET flakes for the first time to separate the PE caps and sediment impurities mixed with PET bottle flakes
Friction washer
Used to rinse the PET flakes with high pressure water and high speed friction then convey the flakes to the rear equipment
De-water machine
The centrifugal force generated by high-speed rotation of main shaft removes most of the water of PET flakes
Pipe air dryer system
Heating the air in the pipe line to further reduce the moisture content of PET flakes.
Zig-zag label sorting machine
To sort out samll label scrap remaining in the PET flakes.

Silo
For storage of clean and dry plastic PET flakes
Control cabinet
For controlling the washing line and observing the operation condition of each piece of machines
