Basic Info.
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, RoHS, ISO 9001
External Grinding Dia
8-200mm
Internal Grinding Dia
13-100mm
Voltage
Customized Option
Transport Package
Standard Ply-Wood Case
Specification
CE SGS ISO9001
Origin
Chizhou, Anhui, China
Production Capacity
20 Sets/Month
Product Description

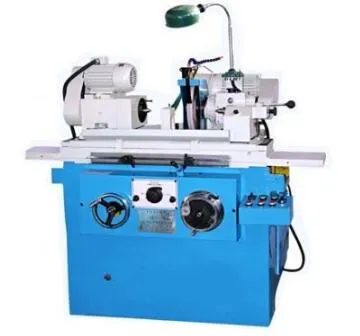

Universal cylindrical grind machine
Mai specification:
| grinding dia | dia 2-80mm |
| center grinding length | 300mm |
| center height | 115mm |
| max workpiece weight | 10kg |
| worktable speed | 0.1-4m/min |
| wheel peripheral velocity | 35m/sec |
| max travel of table | 340mm |
| swivel range of table | -3-+7degree |
| external wheel size | 180-250mm*25*75mm |
| internal wheel spindle speed | 1600r/min |
| tail center | No3 morse |
| machine size | 1360*1240*1000 |
| weight | 1500kg |
| motor power | 2.34kw |
| working accuracy | |
| roundess | 1.5/2.5(OD,ID) |
| surface roughness | RA0.25/0.63(OD;ID) |
| uniformanity of dia in longitudinal section | 5/8UM(OD;ID) |
Certificates and our teams:
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
>>
