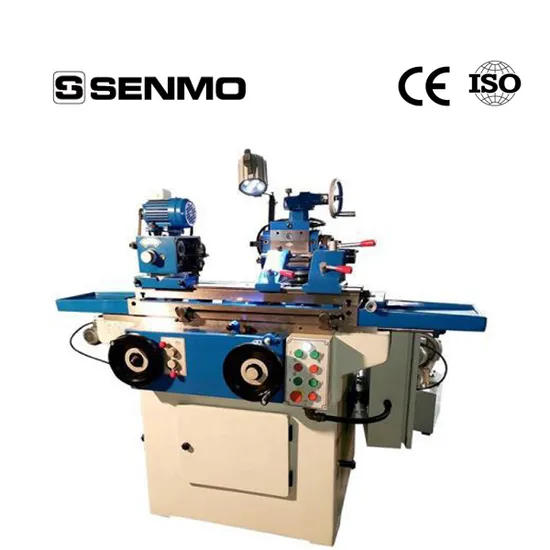

| Specifications | 2M9120A |
| Max. workpiece diameter | 200mm |
| Max. workpiece length | 500mm |
| Capacity | |
| Workpiece diameter external grinding | Φ5-50mm |
| Workpiece diameter internal grinding | Φ10-50mm |
| Tool and cutter sharpening | Φ200mm |
| Workpiece length external grinding | 400mm |
| Workpiece length internal grinding | 75mm |
| Tool and cutter sharpening | 200mm |
| Surface grinding length x width ( being viced ) | 200x50mm |
| Workpiece weight | 10kg |
| Workhead | |
| Height of center | 100mm |
| Center distance between workhead and tailstock | 430mm |
| Center distance between left right tailstock | 500mm |
| Taper of spindle bore | MT2 |
| Speeds of spindle (50HZ) | 110, 200, 300rpm |
| Swivel | ±90° |
| Chuck diameter | Φ100mm |
| Wheelhead | |
| Max. vertical travel | 200mm |
| Max. transverse travel | 200mm |
| Vertical feed per revolution of handwheel | 2mm |
| Vertical feed per division of handwheel | 0.01mm |
| Cross feed per revolution of handwheel, fine/coarse | 1/4mm |
| Cross feed per division of handwheel, fine/coarse | 0.005/0.02mm |
| Swivel in horizontal plane | ±90° |
| Grinding wheel spindle speed (50HZ) | 2500rpm(60HZ 2950rpm) |
| Max. grinding wheel diameter x width x bore diameter | Φ200x20xΦ75mm |
| Internal grinding spindle | |
| Internal grinding spindle | 13500rpm(60HZ 16000rpm) |
| Min. grinding wheel diameter x width x bore diameter | Φ10x10xΦ3mm |
| Max. grinding wheel diameter x width x bore diameter | Φ25x20xΦ6mm |
| Table | |
| Max. travel | 480mm |
| Traverse speed | ≤7m/min |
| Travel per revolution of handwheel | 17mm |
| Travel per revolution of knob | 126mm |
| Max. swivel of upper table | +45°~-30° |
| Tailstock | |
| Taper in center bore | MT2 |
| Sleeve travel | 14mm |
| Motor power | 2.905Kw |
| Overall dimension (LxWxH) | 1520x1142x1338mm |
| Packing dimension (LxWxH) | 1860x1360x1590mm |
| N.W./G.W. | 1350/1700kg |
| | |
| Work accuracy | |
| External | 0.0015mm |
| Internal | 0.0025mm |
| Cylindricity | 0.005mm |
| Surface roughness external | Ra0.32μm |
| Surface roughness internal | Ra0.63μm |
