Farm Implement for Tractor Subsoiler Disc Harrow Deep Tillage

Product Description

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.
Product Technical Parameter

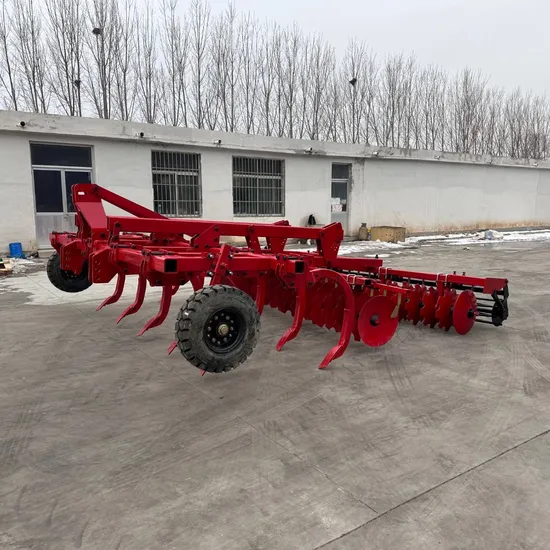

Name:Farm Implement for Tractor Subsoiler Disc Harrow Deep Tillage Deep tillage combined with land preparation machine series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and after plough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It is made of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Product Parameters:

Product model:	4 plow + 4 rotary tiller 427
Total weight:	1670kg
Machine size:	3.9m*3.87m*1.47m
Tillage width:	3450mm
Number of deep tillage shovels:	11
Spacing of deep tillage shovels:	640mm
Number of rake blades:	32 notched disc knives 4 disc knives
Diameter of rake blades:	460mm
Thickness of rake blades:	4mm
Spacing of rake blades:	195mm
Deep tillage:	35-45cm
Main beam:	100mm*100mm*8mm
Supporting power:	Four-wheel tractor with more than 200 horsepower
Working mode:	Three-point suspension

Detailed Photos

Packaging & Shipping
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers. Company Profile
Our Company :

Business type	Manufacturer
Location	Yucheng, Shandong,China
Year Established	2005
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	Disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality and excellent performance, our products are annually exported to countries around the world, and we have gained absolute trust from our customers.

More Products
After Sales Service
1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government. If you are interested in our products, feel free to contart me.

---
