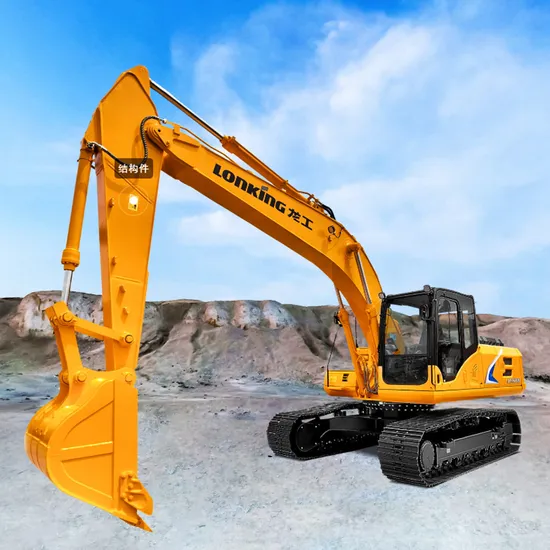

Hot Sale New Crawler Excavator Price with Bucket Capacity

US$41,666.00-98,039.00 1 Set (MOQ)

Basic Info.

Model NO.
LG6225E
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0m³
Size
Medium-Sized
Certification
CE
Condition
New
Approximate Weight
21800kg
Shipping Length
9551mm
Shipping Height
3200mm
Tumbers Distance
3462mm
Radius Swing Center to Rear End
2860mm
Counterweight Ground Clearance
1061mm
Track Gauge
2380mm
Overall Width
2980mm
Width of Upper Structure
2740mm
Track Shoe Width(Standard)
600mm
Min. Ground Clearance
480mm
Origin
China
HS Code
8429521200
Production Capacity
500

Product Description

Product Description
The whole machine Approximate Weight (kg) 21800
Bucket Volume (m3) 1.0
Pressure to the Ground (kPa) 45
Travel Speed (Low/High)(km/h) 3.2/5.1
Rotation Speed (rpm) 12.1
Gradeability(°) 35
The engine Model Cummins QSB6.7
Power (kW/rpm) 124/2000
Displacement (L) 6.7
Fuel Tank Capacity (L) 380
The hydraulic system Work Pressure (MPa) 31.4/34.3
Flow (L/min) 208*2
Hydraulic Tank Capacity (L) 190/270
Digging force Max. Bucket Digging Force(kN) SAE/ISO 135/158
Max. Arm Digging Force (kN) SAE/ISO 102/105


Our Advantages

All-round work structure Realize diversified operation of excavators, cope with various working environments, quickly and effectively, and save time
Intelligent man-machine dialogue Selfdeveloped MCSS electronic control system,
people work closely with the machine to maintain the best state and efficiency of the machine
Engine Management Specialist
Achieve precise power matching, more powerful, more energy -saving, and improve work efficiency
360· safe cabin The left and right column reinforced cab greatly improves the strength and rigidity of the cab, forming a solid 360' safety protection
Remote command center The operating status of the machine can be remotely mastered through the Internet or mobile phone, and management and support can be carried out without on-site, which saves time and space.
