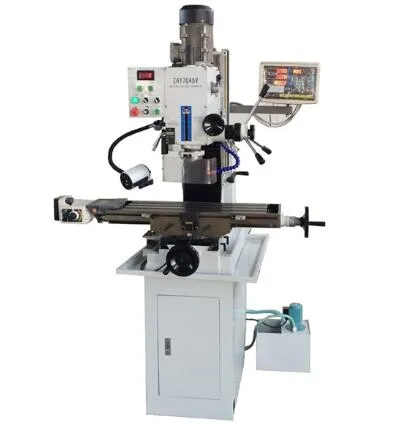

ZAY7045V-1 Variable Speed Milling and Drilling Machine with CE Standard

US$1,350.00-1,900.00 1 set (MOQ)

Basic Info.

Model NO.
ZAY7045V-1
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
800X240mm
Drilling Capacity
45mm
Spindle Travel
130mm
Spindle Taper
Mt4/R8
Motor Power
1.5kw
Transport Package
Standard Plywood Package
Specification
CE
Trademark
WMT
Origin
Anhui
HS Code
84592900
Production Capacity
50 Sets/ Month

Product Description


Features:
Variable speed type
Spindle Auto-feeding
Gear head and square column
Main specification:
Item Unit ZAY7032V
ZAY7040V
ZAY7045V
ZAY7032V/1
ZAY7040V/1
ZAY7045V/1
Max.drilling capacity mm 32 40 45 32 40 45
Max Face mill capacity mm 63 80 80 63 80 80
Max End mill capacity mm 20 32 32 20 32 32
Distance from spindle nose to table mm 400/400/450 450
Min.distance from spindle axis to column Mm 260 260
Spindle travel Mm 130
Spindle taper mm MT3,MT4 or R8
Range of spindle speed(2 steps) 100-530R.P.M, 530-2600R.P.M
Auto-feeding step of spindle 6
Automatic feeding amount of spindle Mm/r 0.06-0.30
Swivel angle of headstock (perpendicular) ° 90
Table size mm 800x240
Forward and backward travel of table mm 175
Left and right travel of table mm 500
Motor power(AC) KW 1.1 1.1 1.5 1.1 1.1 1.5
Net weight//Gross weight KG 300/350 310/360
Packing size 770x880x1160mm
