Product Details
Product Description
Product Description

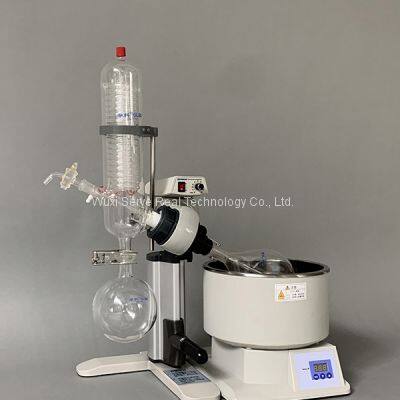

1L Rotary evaporator
Features
1. Fully modular aluminum alloy body
2. Constant force lifting and handle locking system, easy to operate
3. Vertical three-circuit large-area high-efficiency condenser
4. 304 stainless steel CNC water bath
5. The patented tetrafluoroethylene sealing system can maintain a high vacuum degree above -0.098Mpa and is resistant to various solvents (patent number: 022640703)
6. ISO ball mouth collection bottle, easy to install and not easy to damage
7. Simple but practical operation panel
8. Condensate and vacuum transition interface ensure no damage to glass
9. Patented sealing components, resistant to various solvents, maintain high vacuum degree
10. With unloader bayonet can avoid rotary flask to be chucked
11. Constand load lifter, can freely lock at any place
Specifications
Motor power
| 25w
|
Rotational speed
| 10-190rpm
|
Heating power
| 1.25kw
|
Temperature control
| Rt-100℃,±0.5℃
|
Temperature control mode
| PID
|
Lifting height
| 100mm(auxiliary lift 150mm)
|
Rotary bottle volume
| 1L(24# New standard port)
|
Collection bottle volume
| 1L(ISO35 ball grinding)
|
Condenser area
| 0.28m2
|
Working power
| 110V/220VAC, 50/60hz
|
Overall dimensions & weight
| 360*520*740mm, 12kg
|
3L Rotary evaporator
Features
●Fully modular aluminum alloy body.
●Encoder setting, digital display of speed.
●The main engine is lifted and lowered electrically, locked at any position, and the operation is simple and convenient. When the control power is turned off, the main engine rises automatically.
●Vertical three-circuit large-area high-efficiency condenser.
●304 stainless steel fluorine-coated numerically controlled constant temperature water bath with anti-dry function.
●Teflon patented sealing system, can maintain a high vacuum degree above -0.098Mpa, and can resist various solvents.
Specifications
Motor
| 40W DC brushless type
|
Speed adjustment range
| 20～280 r/min
|
Speed setting/display
| Encoder setup, digital setup
|
Vacuum sealed
| PTFE patented seal (patent number: 022640703)
|
Heating power
| 1250w
|
Bath size
| Ø252×130mm（H）
|
Temperature display
| Digital display
|
Temperature adjustment range
| Rt+5 ～ 100 ℃
|
Temperature control mode and accuracy
| PID control，±1℃
|
Condenser form
| Standard vertical form, inclined form optional
|
Condensing area
| 0.28 m²
|
Rotary bottle
| Standard 1000ml& 500ml；maximum 3000ml
|
Collection bottle
| ISO35#ball grinding mouth，1000ml
|
Lifting mode and stroke
| Motorized lifting，stroke 100mm
|
Evaporation capacity (water)
| 1.5L/h
|
Power supply
| 110～240v 50/60hz
|
Dimensions
| 550×420×700mm（H）
|
Weight
| 15.0kg
|
Features
●Unique PTFE-fluoroplastic composite sealing system Design, the system vacuum can reach -0.099Mpa
●Automatic water bath lifting system, convenient and quick. Precision gear transmission system, stable and reliable.
●DC brushless motor, low noise, no sparks.
●New fuselage, beautiful and practical operation interface
●LCD display, encoder design, control the speed heating function.
Specifications
Motor Power
| 80W (DC brushless)
|
spinning speed
| 10 ~ 120r/min
|
heating power
| 2.0KW (220V)
|
Temperature control range
| Room temperature ~ 150℃
|
Temperature control method and accuracy
| P.I.D intelligence, ±0.5℃
|
Lifting height of water bath
| 120mm
|
Spin the bottle
| 5 L
|
Collection bottle
| 3 L
|
Condenser
| 0.35m2
|
Dimensions
| 700×300×1100(mm)
|
