Dafon Hydraulic Stone Splitting Machine Line

US$110,000.00
1-4 Pieces
US$105,000.00
5+ Pieces

Basic Info.

Model NO.
DF-1221
Max. Working Height
120m
Type
Impact Crusher
Drive
Hydraulic
Crushing Degree
Intermediate Crusher
Crushing Style
Extruding
Principle
Cylinder Culling
Cutter Material
Polycrystalline Diamond
Finished Surface
Cut Off Tool
Compressive Strength (For Crushing)
>300MPA
After-sales Service
We Provide Skilled and Rich Experience Technician
Warranty
One Year Warranty
Object
Stone
Transport Package
Wrapped with Bubble Plastic
Specification
168*95*195cm
Trademark
DAFON
Origin
Quanzhou, China

Product Description

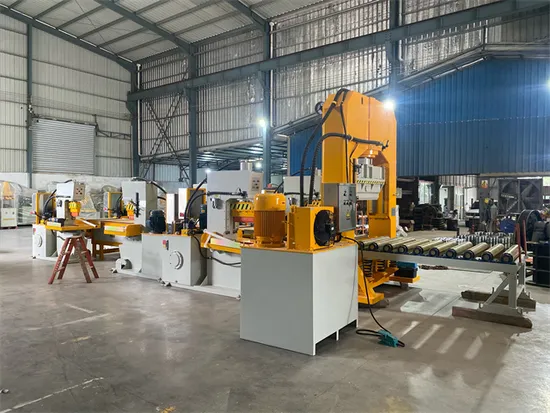

Dafon Hydraulic Stone Splitting Machine Line
The stone splitting machine is easy to operate and the assembly line can greatly increase production.
Technical parameters:
Dimensions(L*W*H) 380×390×305CM
Weight 7.5T
Power 18.5KW
Voltage / Frequency 380V / 50HZ
Flow rate 80L/M
Pressure 300T
Blade feeding speed 4CM/S
Max. cutting height 60CM
Max. cutting width 120CM
Output / Hour 90M2
Hydraulic oil grade 46#
Oil tank capacity 550L / 450KG
Dimensions(L*W*H) 200×100×220CM
Net weight 1.7T
Power 11KW
Voltage / Frequency 380V / 50HZ
Flow rate 47L/M
Pressure 80T
Blade feeding speed 9CM/S
Max. cutting height 30CM
Max. cutting length 40CM
Output / Hour 18M2
Hydraulic oil grade 46#
Oil tank capacity 350L / 290KG
Packing size 210×110×230CM
Gross weight 1.9T

F&Q Q: When can my order get ready for shipment ? A: Normally 20-30 days after receiving down payment, but it can be negotiated if customers need urgently. Q: How about the quality guarantee period ? A: one year Q: How can you guarantee the production quality ? A: We have strictly quality control system in our production process. All products must be double checked during every manufacturing process. Requirement of customers and quality of products will be full guaranteed. Q: After I buy the machine, how I can install and operate it ? A: We strongly suggest customer to ask our engineer to come to help you to install the machines, teach your operator how to operate and maintain the machines. Q: If machine got problem, what can you support it ? A: It depends on the problem, usually the process is like this 1. phone or email the customers how to settle at first. 2. send the good one by Express immediately if spare parts broken. 3. if problems still not be settled, we will appoint our engineer to solve the problem on spot.
