Metal Roofing Tile Corrugated Profile Roll Forming Machine Building Material Machinery

Product Description

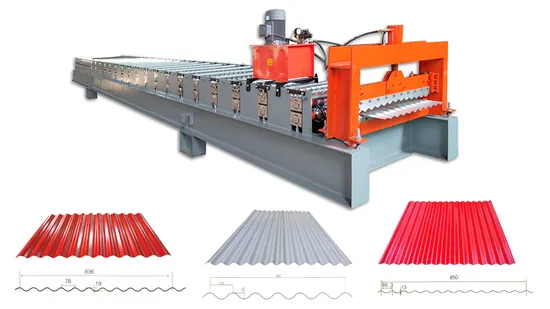

Corrugated sheet Roll Forming Machine
Detailed Photos
Product Parameters

Suitable to process	Color steel plate
Width of the plate	914mm/1000mm/1200mm/1220mm/1250mm
Thickness of the plate	0.3-0.6mm
De-coiler	Manual one, can load 5 tons raw material
Rollers for forming	21+13 rows
Diameter of the roller	80mm
Rolling material	Carbon Steel 45#
Main motor power	5.5kw
Material of the cutting blade	Cr12 mov
Hydraulic cutting power	4kw
Processing precision	Within 1.00mm
Control system	Delta PLC control
Side panel of machine	16mm
Main structure of the machine	350 H steel
Weight	About 5T
Dimensions	8.5*1.6*1.6m
Voltage	380V 50Hz 3phases(changeable as needs)
Certificate	CE/ISO
Custom	According to customer's requirements

Packaging & Shipping

Packaging Details:	Main machine is nude, the computer control box is packed with wooden frame.
	Main machine is nude in the container, the computer control box is packed with wooden packaging.
Delivery Detail:	20 days

Company Profile
FAQ
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK.
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you. metal steel profile roof tile cold roll forming machine
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you. metal steel profile roof tile cold roll forming machine
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.metal steel profile roof tile cold roll forming machine
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skyp. metal steel profile roof tile cold roll forming machine

---
