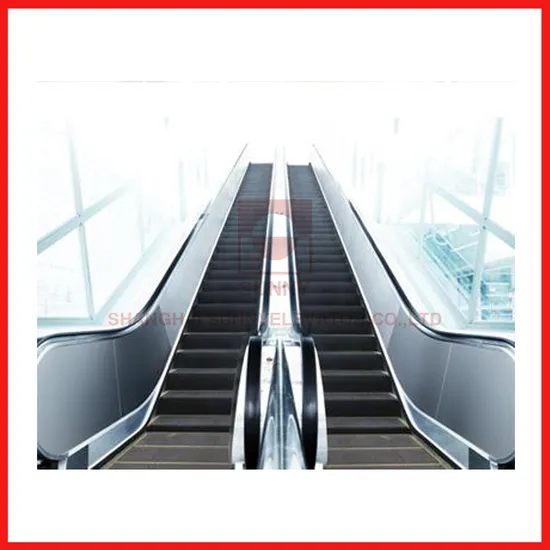

Inclination 30° /35° for Safety and Energy Efficiency Escalator

Product Description

Inclination 30° /35° for Safety and Energy Efficiency Escalator
Our Elevators is following its dream. Advanced microprocessor control systems, high-strength truss structures, classic drive technology, internationally leading energy-efficient technology, consummate protective equipment, precise techniques, smooth lines, elegant shapes, optimized results from human-machine engineering and people-oriented design - all together these fulfill you every conceivable dream. Whether in a bustling transport hub such as a railway station, metro system or airport, or a pedestrian footbridge in a busy city, our public transport escalators will enable passengers to feel at ease, relaxed and comfortable as they travel between levels.
***************************************************
For detail information, please contact us.
***************************************************
Business type escalator construction parameters

Inclination	Speed(m/s)	Max.travelling height(mm)	Step width(mm)	Handrail spacing(mm)	Escalator width(mm)	Truss width(mm)	Truss type	Applicable environment
30°/35°	0.5	1500~8000	600	837	1200	1160	Square tube truss	Indoor/outdoor/semi-outer
			800	1037	1400	1360
			1000	1237	1600	1560

Light load public escalator construction parameters

Inclination	Speed(m/s)	Max.travelling height(mm)	Step width(mm)	Handrail spacing(mm)	Escalator width(mm)	Truss width(mm)	Truss type	Applicable environment
30°/23.2°/27.3°	0.5/0.65	3000~13000	1000	1237	1600	1560	Square tube truss	Indoor/outdoor/semi-outer

Heavy public type escalator construction parameters

Inclination	Speed(m/s)	Max.travelling height(mm)	Step width(mm)	Handrail spacing(mm)	Escalator width(mm)	Truss width(mm)	Truss type	Applicable environment
30°/23.2°/27.3°	0.5/0.65	3000~25000	1000	1362	1750	1700	Angle steel truss	Indoor/outdoor/semi-outer

Our factory
Delivery
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 32-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won't break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.

---
