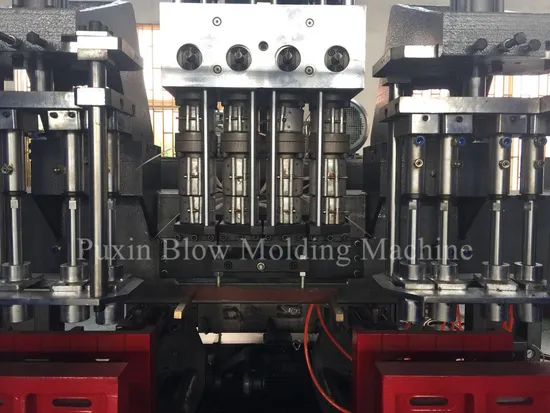

4 Cavities 2 Station High Speed Automatic Bottle Blow Moulding/Molding Machine

Product Description

PXB70D
2L-5L Double Station High Speed
Blow Molding Machine
Special Features:
- High Speed Double Station with central-incoming die head
- Perfect usage for large amount of 2L - 5L HDPE,PE,PP,PVC,PA Bottle, kettle, sea ball, toy production
- Optional double layers, three layers, multi-color and transparent stripe.
- Differential design of hydraulic system, stable mold-moving and fast action.
Basic Equipment

Clamping system	Double Station+High-precision guide+large arm cylinder axle
Extrusion System	Hard gear surface decelerator+Japan inverter
Die system	Center -incoming extrusion die with special steel
Hydraulic system	Japan hydraulic valve seal and proportional control
Control system	Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts

Configuration List:

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China

Parameters

Specifications
Material		PE,PP, PVC, PA...
Max container capacity	L	5
Number of die	Set	1, 2, 3, 4
Output(dry cycle)	Pc/hr	800x2
Machine Dimension(LxWxH)	M	3.4x2.2x2.5
Total weight	T	5.0
Clamping Unit
Clamping force	KN	68
Platen opening stroke	mm	150-500
Platen size	mm	338x380
Max mould size(WxH)	mm	338x350
Mould thickness	mm	155-300
Power
Max drive	KW	33
Total power	KW	41
Fan power for screw	KW	0.25
Air pressure	MPA	0.7
Air consumption	M3/min	0.9
Average energy consumption	KW	23
Extruder unit
Screw diameter	mm	70
Screw L/D ratio	L/D	24
Melting capacity	Kg/hr	80
Number of heating zone	zone	3
Extruder heating power	KW	14.2
Extruder driving power	KW	22
Die
Number of heating zone	zone	3
Power of die heating	KW	5.7
Max die-pin diameter	mm	135
Center distance of double die	mm	160
Center distance of tri-die	mm	110
Center distance of tetra-die	mm	85

Delivery Time:
- No later than 40 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

---
