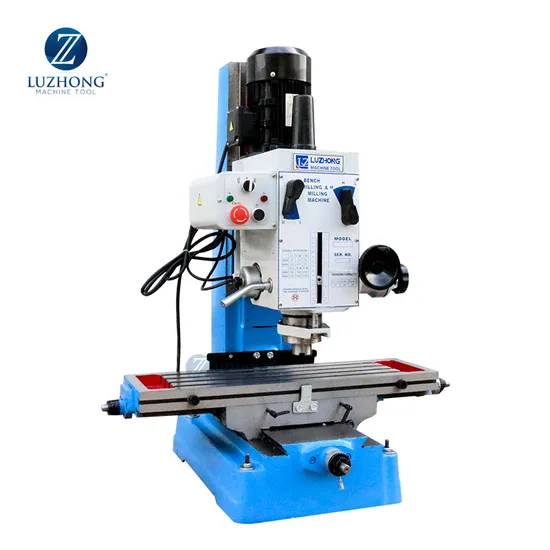

China Manufacturer ZX7040B ZX7040B1 Gear Head Auto-Feed Drilling & Milling Machine

Product Description

China Manufacturer ZX7040B ZX7040B1 Gear Head Auto-Feed Drilling & Milling Machine
Product Description
Detailed Photos
Product Parameters
The main performance characteristics:
Reinforced type gear, transmission torque large
B1 type optional 2-speed motor, spindle speed range widely.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:

Specifications	ZX7040B/ZX7040B1
Max. Drilling capacity (mm)	cast iron:40/ Steel:32
Max. face mill capacity (mm)	80
Diameter of vertical milling (mm)	22
Diameter of column(mm)	115
Spindle travel (mm)	110
Distance spindle axis to column generating line (mm)	261.5
Max. Distance spindle nose to table (mm)	450
Spindle taper	MT4 orR8
Spindle speeds range (r/min)	50~1250/50~2500
Spindle speeds series	6/12
Spindle feeds(mm/r)	0.12 0.18 0.25
Dimension of worktable surface (mm)	Standard : 730x210 select: 820x240
Table travel (mm)	Standard :450×170 select: 540x170
Dimension of base(mm)	605x400
Overall height (mm)	1100
Main motor (W)	Single-phase:1100 Three-phase: 1500
G.W/N.W(Kg)	390/350
Packing dimension (cm)	97×77×116

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
