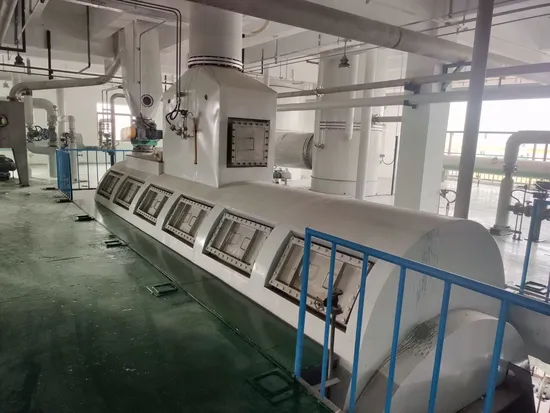

Horizontal Drying Machine with High Quality

Product Description

Model No.: 5000-80000t/a
Product Description Soy Protein Concentrate Production Line

Soy Protein Concentrate Production Line (annual capacity: 50,000 tons)
1. Raw Materials:
low-temperature soybean flakes ( Soya White Flake )
2. Products:
food grade or feed grade soybean protein concentrate (SPC)
3. By-Products:
soybean syrup
4. Applications
4.1 Food grade SPC is usually used as additives of flour-made food and meat products. It is also applied for production of health care products, which contain about 70 percent protein.
4.2 Feed grade SPC is applied as feed additives in particular, which are put in fodders for baby pigs, aquatic livestock, calves or pets.
5. Process Description
In our production line, edible alcohol is used to extract and separate water-soluble components (mainly soluble sugars) from low-temperature soybean flakes. The resulting soybean product will be extruded, smashed, desolventized, dried and superfinely milled, thus obtaining soybean protein concentrate. The whole production process won`t generate water pollution and air pollution, which is environmental friendly. Our SPC production process will become the prominent method for production of SPC in the future.
6. Process Workflow

7. Major Devices
Extractor, extruder, horizontal desolventizer, vertical dryer, evaporation and concentration system for syrup, condenser for recycle of ethanol steam, recovery system for exhaust gas, protein conveying and cooling system, protein smashing and packing system, rising conveyor and other auxiliary devices.

8. Production Capacity: 20t/d-250t/d SPC
9. Representative Clients

10. Why Us
1. CHEMSTA is located in Jining City, Shandong Province, our factory covers an area of 66000m2, a holding company belongs to Jining Machinery Design & Research Institute. As National Hi-tech Enterprise,We have more than 460 employees, including 116 engineering technicians( 5 application researcher, 56 senior engineers,46 engineers). We have RMB180 million fixed assets.
2. We have successfully obtained many national patents. Many products are obtained National Key New Product Project Award, Shandong Province Science & Technology Promote Product Award, Shandong Province Key Field Technology Product Award, Jining Major Science & Technology Specifical Product Award, and many provincial, municipal Science and Technology Progress Award, etc.
3. We have the most complete production certificates of oil machines, such as "ASME Pressure Vessel" "Design license of pressure vessel","Manufacture license of pressure vessel","Design license of pressure pipeline","Installation,reconstruction and maintenance license of pressure pipeline", "Manufacture license of organic heat carrier furnace" and installation certification of mechanical and electrical equipment".
4. We are outstanding member enterprise of CCOA (Chinese Cereals and Oils Association), so we produce machines according to standard, and refined oil reaches the best edible oil standard.
5. We are provincial enterprise abiding by contracts and keeping promises, we have produced oil machines for 65 years, with rich experience and own brand, so we are responsible for all of our projects, especially for oversea projects.
We also provide the following project and equipment:
Oilseed Pretreatment Project
Oilseed Pressing Project
Oil Extraction Project
Oil Refining Project
Cottonseed Miscella Refining Project
Low Temperature and Edible Soybean Meal Project
Soy Protein Concentrate Project
Soy Protein Isolate Project
Looking for ideal Horizontal Disc Dryer Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the SPC Extractor Extracting are quality guaranteed. We are China Origin Factory of Molasses Evaporator Evaporation. If you have any question, please feel free to contact us.

---
