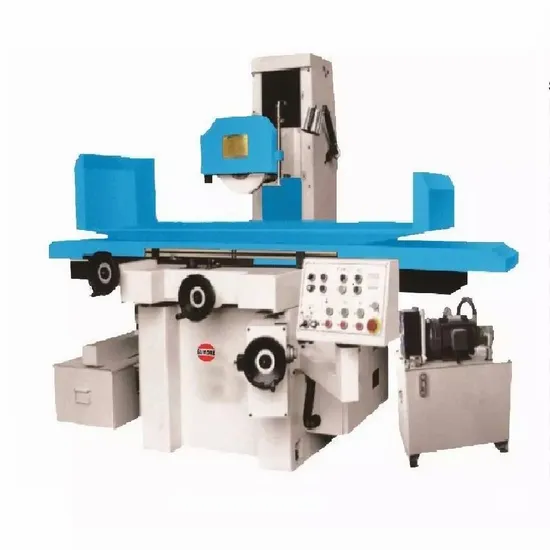

Low Price Universal Cylindrical Sumore Grinding Machine Machinery Manual Surfance Sg3060 Surface Grinder

US$8,000.00-14,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SG3060
Type
Surface Grinding Machine
Processing Object
Surface
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Table Size
300*600mm
Floor Space
2500*2600mm
Max. Table Travel
660mm
Max. Cross Travel
370mm
Max Table Load
420kg
T Slot
1*14
Crossfeed Hand Wheel
5
Spindle Speed
1450/1740
Spindle Power
2.2kw
Hydraulic Motor
1.5kw
Weight
1800/2100kg
Packing Space
2090*1940*2210
Transport Package
Plywood Box
Specification
500X250mm table
Trademark
SUMORE
Origin
China
HS Code
8458912090
Production Capacity
1000

Product Description

Product Description
SGA Series saddle moving surface grinder surface grinding machine SGA4080/SGA3063/SGA40100 SG3060
HORIZONTAL SURFACE GRINDING MACHINE1.Hydraulic longitudinal table travel2.Quality castings and Precision ball bearing supporting the spindle3.Coolant system with nozzle and flow control valve4.Cast iron machine body and stand for maximum rigidity and smooth operation5.Vertical dial graduations 0.01mm6.Cross travel graduations 0.02mm7.Manual one shot lubrication pump8.Wheel balancing stand and arbor9.Halogen work light

Product Parameters
Product Specifications
Model
SG3060
Working table
300*600mm
Floor space
2500*2600mm
Keay words
surface grinder
Max. table travel
660mm
Max. cross travel
370mm
Distance between table surface and spindle center
540mm
Max table load
420kg
T slot
1*14
Crossfeed hand wheel
5
spindle speed
1450/1740
Spindle power
2.2kw
Hydraulic motor
1.5kw
Floor space
2600X2500mm
Packing space
2090*1940*2210
weight
1800/2100kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
