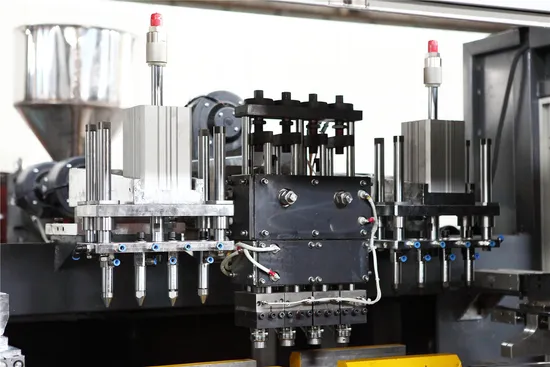

Automatic HDPE PE Container Blow/Blowing Molding Machine

US$20,000.00-25,000.00 1 Unit (MOQ)

Basic Info.

Model NO.
SYJII-SF-50-4
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Avilable
Type of Shipping
Sea Transportation
Transport Package
Wooden Packing
Specification
4100mm*4000mm*2250mm
Trademark
SJ
Origin
China

Product Description


Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.
Code SYJII-SF-50-4
Max Product Volume 100ml
Output 840pc/h*4
Machine Size 3100mm*1800mm*2200mm
Weight 3500KGS
Voltage&Frequency Clients' Specified
screw Diameter 50mm
L/D Ratio 1:(22-30)
Die Head Qty 4pcs
Max Center Distance of Die Head 70
Extrusion Motor Power 7.5KW
Total Power 27KW
Average Energy Consumption 5kw
Extruder heating power 9kw
Number of hating zone 3
Oil pump drive power /
Max plasticizing capacity 30-50kg/h
Platen Size 300mm*200mm*150mm
Max mould size 300mm*200mm*150mm
Clamping force 15KN
Opening Stroke 120mm-150mm
Moving Stroke 350mm
Cooling water pressure 0.3MPa
Water consumption 20L/min
Air pressure 0.6Mpa
Air consumption 0.4centiare/min
