US$30,000.00-40,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Species
Die Cutting and Creasing Machine
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Blade
Computerized
Computerized
Automatic Grade
Semi-Automatic
Application
Paper Packaging Materials, Heat Insulation Material
Transport Package
Wooden Case
Specification
4.6m*2.8m*2.3m
Production Capacity
200sets/Year
Product Description

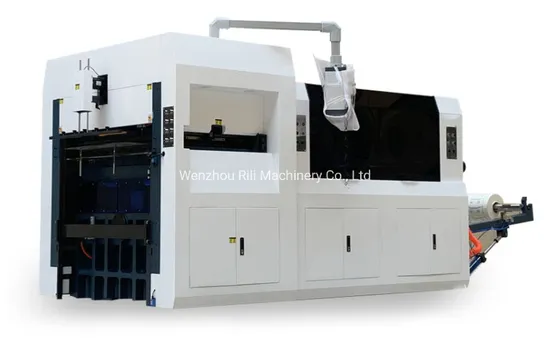

Automatic Roll Paper Cup Cutter Die Cutting Machine Price
1. Application: Roll die cutting machine is widely used in the area of the roll printing, packaging, paper cups and so on .It is suitable for kinds of cigarette boxes, medical boxes, envelope, paper cups, paper bowels, gift bags and the other paper and plastic products. The main electric part and opponents of the machine adopts imported ones, It adopts the structure of worm gear, can make the products of high quality, low depletion, high security. The machine controls the feeding automatically, color mark tracking, and die cutting accurately, knife plate locking pneumatically, easy operating and changing.
2. Main Technical Parameters:
| Model | RW-970 | RW-1080 |
| Cutting Precision | ±0.1mm(white paper) | ±0.1mm(white paper) |
| Rated Cutting Speed | 180-200times/min | 130-160times/min |
| Max Cutting Speed | 200 times/min | 160times/min |
| Max Cutting Pressure | 320T | 320T |
| Max Cutting Paper Size(W×L) | 940mm*640mm(W×L) | 1050mm*610mm(W×L) |
| Min Cutting Paper Size(W×L) | 400mm*350mm (W×L) | 400mm*350mm (W×L) |
| Suitable Paper Weight | 100g-500g | 100g-500g |
| Total Rate Of Machine | 16Kw | 16 KW |
| Main Motor Power | 7.5Kw | 7.5kw |
| Overall Dimensions (L×W×H) | 4.6m*2.8m*2.3m | 6.6m*2.8m*2.3m |
| Total Weight | 7.5T | 8.5T |
3. Machine Pictures:
1) Worm Gear Structure
2) Lubri cation system:
3) The main unit
>>
