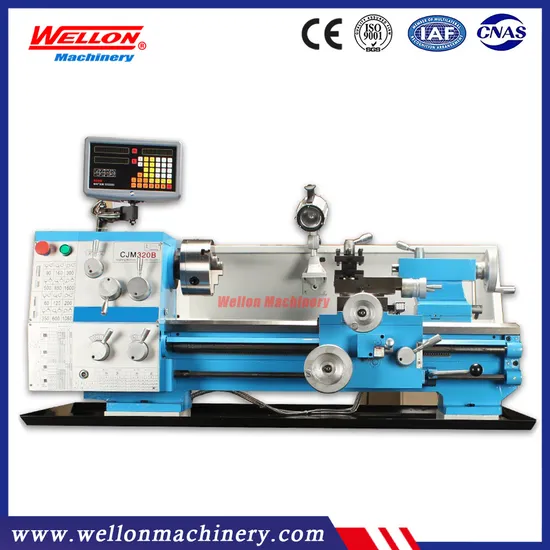

Bench Metal Turning Lathe Machine CJM320 Bench Gear Lathe

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features: All gears spindle box.
No need change gears, easy operate to change the feed rate.
High strength metal gear,corrosion resistant aluminum alloy belt pulley.
Two "V" precision guide rail,reenforced by hardening and grinding.
High power motor with continually variable transmission,spindle with liquid crystal display.
Tailstock with clamping lever and offset,small and convenience.
Technical parameter:

Specification	CJM320
Swing ovr bed	320mm
Distance between centers	600mm
Carriage slide centers	200mm
Spindle bore	38mm
Spindle taper	MT5
Spindle speed	12 Steps 60-1600 rpm
Carriage travel	160mm
Tool post tavel	100mm
Metric threads	22
Range of metric thread	0.20-7mm
Longitudinal travel range	0.1-1.4mm/r
Cross travel range	0.04-0.28mm/r
Tailstock travel	80mm
Tailstock taper	MT3
Motor	750W
N.W/G.W	390/450
Packing size	1450X770X1470

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
