US$10,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Panel Feeding Speed
10-23m/Min
Manufacturing Principles
Glue Tank Underneath
Transport Package
Plywood Case
Specification
5670*850*1520mm
Production Capacity
2 Sets/Week
Product Description

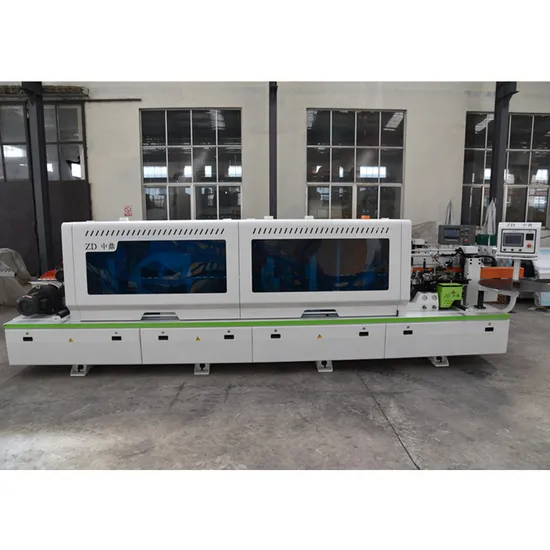

Furniture Manufacturing Automatic Edge Banding Machine Factory
Technical Specifications:
Functions: Gluing, edge banding, end trimming, rough trimming, fine trimming, corner trimming, scraping, buffing.
| Model | MF450C |
| Banding tape thickness | 0.4-3mm |
| Banding tape width | 12-65mm |
| Workpiece thickness | 10-60mm |
| Workpiece length | >=100mm |
| Workpiece width | >=50mm |
| Heating power | 1.8kw |
| Feeding motor power | 3.7kw |
| Glue spreading motor power | 0.75kw |
| End trimming motor power | 0.5kw*2 |
| Rough trimming motor power | 0.75kw*2 |
| Fine trimming motor power | 0.75kw*2 |
| Corner rounding motor power | 0.5kw*2 |
| Polishing motor power | 0.37kw*2 |
| Feeding speed | 10-23m/min |
| Air pressure | 0.8Mpa |
| Overall dimension | 5670*850*1520mm |
Detailed pictures:
Packaging & shipping:
About us:
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machine to customers. Our company has professional technology, full range of testing lines and pipelining, CNC processing center, Laser cutting equipment, etc.
Our products are mainly included Precise panel saw, Edge Banding Machine, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
FAQ:
1. The MOQ is 1 set.
2. The delivery time is 15-20 days after deposit.
3. The voltage can be customized.
4. OEM service is available as we are factory.
5. CE and ISO certification available.
6. Factory address: Wangtai twon, Jiaonan city, Qingdao, China. Welcome to visit us!
For more details, pls feel free to contact us.
>>
