Woodworking Machinery of A4-1325-L8-E Sign CNC Router Engraving Machine for Cutting Wood

Product Description

Product Description

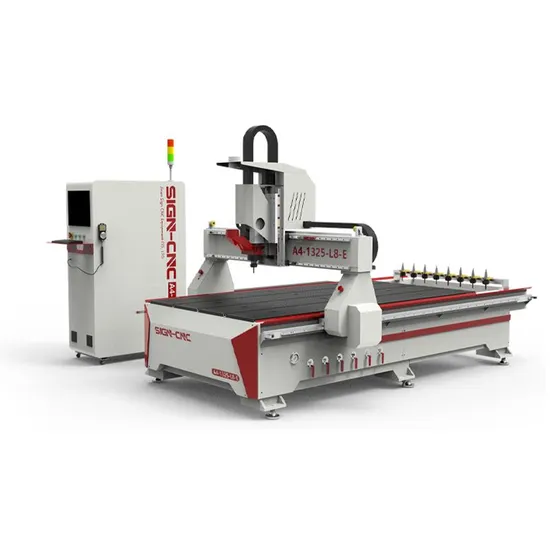

Woodworking Machinery of A4-1325-L8-E SIGN CNC Router Engraving Machine for Cutting Wood
Application
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry. PRODUCT SPECIFICATIONS

Model	A4-1325-L8-E
X, Y Working size	1300*2500mm
Z feed Height	300mm
Table Surface	Vacuum table with T-slot and 5.5KW vacuum pump
X, Y Structure	Helical rack and high precision 25mm Square Guide Rail
Z Structure	High precision 25mm square guide rail and ball screw
Max. Power Consumption	MS300 series big power 11KW
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Spindle Power	HQD 9.0KW ATC air-cooled ISO30-ER32 spindle
Spindle Speed	0-24000RPM
Drive Motors	750W AC servo motor and driver (Z-axis motor with brake)
Working Voltage	AC380V 50/60Hz
Control System	Shanlong L68
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam with post processor
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
Optional Parts	Linear type 8-12 tools changer magazine
Warranty	Two years

Packaging & Shipping
FAQ 1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.

---
