Straight Edge Glass Processing Line Used Pillar Type Vacuum Lifter with Jib Crane Glass Lifting Equipment Crane Railling 350kg

Product Description

Model	RSY-XZ 350-4	RSY-XZ450-6
Operating Weight	350 KGS	450 KGS
Work range	Rotating 90°	Rotating 90°
Vertical lifting range	1200mm	1200mm
Pneumatic Components	SMC(Japan)	SMC(Japan)
Suction cups QTY.	4	6
Suction cups diameter	250mm	250mm
Sucker Material	Silica gel	Silica gel
Min Glass Size	600*800mm	600*800mm
Max Glass Size	2400*2400mm	2500*2500mm
Applications	Applied in glass loading unloading of vertical glass processing machines, such like single line glass edging machine, insulated glass production line.	Applied in glass loading unloading of vertical glass processing machines, such like single line glass edging machine, insulated glass production line.

Product Description

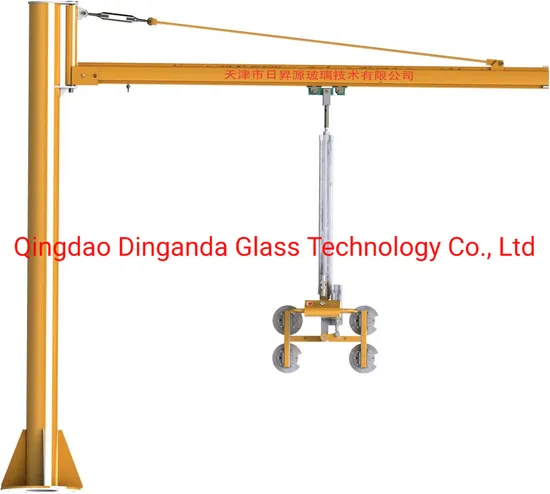

Straight Edge Glass Processing Line Used Pillar Type Vacuum Lifter
with Jib Crane Glass Lifting Equipment Crane Railling 350KG
1.The best equipment glass machine used for handling glass. 2.Suitable for moving float glass, laminated glass, insulated glass, tempered glass, glass curtain wall, all kinds of glass. 3.Pneumatic components adopt Japan SMC, stable quality, pneumatic pressure is 0.6-0.8Mpa. 4.The Suction Cups use high quality white silica gel, which has performance well in cold and hot weather -40 °C to 90 °C.
5. Special safety locking to protect glass from falling down when sudden air supply off.6.It can turn glass left & right ( rotating 90 degrees with glass in vertical status), common used for vertical glass processing machines, especially for single line glass edging machine, insulated glass production line, vertical glass washing machine, vertical glass drilling machines, and so on. Detailed Photos
1. All the key componenets adopt Japan Famous Brand SMC
2. Suction Cups use white silica material to ensure good performance in hot and cold weather.
3. The main steel frame use strong national square tube for high safety level
4. The distance between suctions cups is adjustable to fit different glass sizes.
5. Special safety valve to protect glass from falling down when emergency air off.



Packaging & Shipping

FAQ
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer located in Tinajin city, China. We are specilized in glass machines and glass tools over 20 years.

Q2: What is your MOQ?
A: For the Vacuum Glass Lifter, our MOQ is 1 Set.

Q4: Could you produce according to customers' design?
A: Sure, with experience technican team, we can produce according to customers' design.

Q5: What is your main products?
A: Glas racks, vacuum glass lifters, glass laminating machines, glass loading unloading equipmens, glass tools, and so on.
Welcome to contact us for more product details.

Q6: What's your payment?
A: By T/T with 50% deposit, and T/T with the 50%balance before delivery.
