CNC 3 Axis 4 Axis 5 Axis Fanuc System Vertical Milling Machine Machining Center

Product Description

CNC 3 Axis Vertical Machining Center Milling Machine For Metal
Product Description
vmc 1160 vertical milling machine is
composed of base, column, middle
sliding saddle, table, headstock,

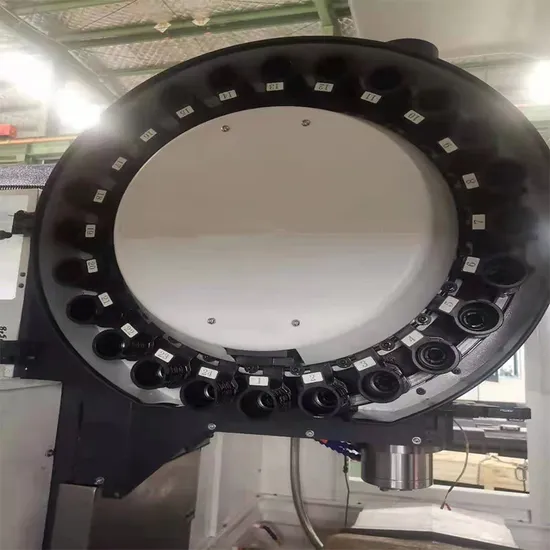

operation panel, tool magazine,
pneumatic system, lubricant system,
cooling, lighting, protection system,
CNC system, electrical system.

Detailed Photos
Product Parameters

Specifications	unit	VMC1160
X/Y/Z travel	mm	1100/600/600
Distance from spindle nose to table surface	mm	120-720
Spindle Power	kw	11/15
Spindle speed	rpm	10000
Spindle Taper		BT40 (Φ150)
Positioning Accuracy	mm	±0.003
Repeat Positioning Accuracy	mm	±0.0015
Table Size	mm	1200x600
Max.Table loading	kg	900
T-Slot		5-18-100
X/Y/Z rapid speed	M/min	36/36/36
Cutting Speed	mm/min	1-10000
X/Y/Z axes ball screw diameter		Φ40
X/Y/Z axes servo motor power	kw	3.0/3.0/4.5
Linear width X/Y/Z	mm	45/45/45
Guideway No. X/Y/Z		2/2/2
Slider No. X/Y/Z		6/4/6
Max.power consumption	kw	25
Air	Mpa	0.5-0.7
Power		380V/220V/415V/50(60)Hz/3ph
Ambient Temperature		0ºC-42ºC
Relative humidity		≤80%
Machine Net Weight	T	6.5
Overall Dimension	mm	3200x2550x2600

Hot Products
Company Profile
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines?
Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located? How can I visit there? Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).

---
