Complete Solar Collector Water Heater System Set

Product Description

complete solar collector system

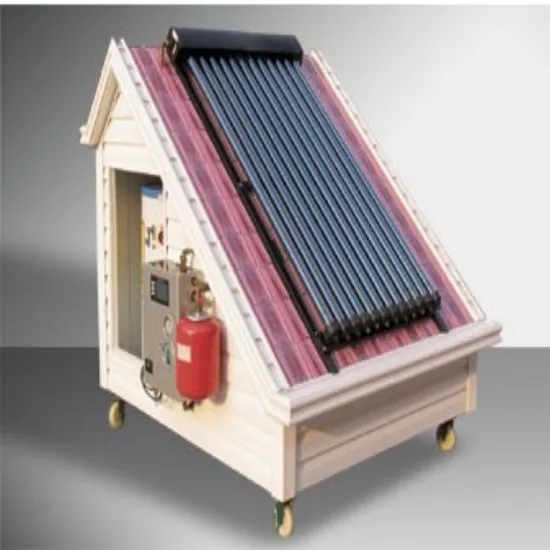

The split solar water heating is an active system, because it uses a pump with a controller to circulate the fluid between solar collector and the storage tank, tank and solar collector are separate, while the collector is integrated in to the roof of the building, the tank and the pump station can installed anywhere of the building.
Feature:
1.Collector separated with storage tank.The tank can be put in any place of house.And the collector can be put on the clined roof or flat place
2.Module design,arbitrary combination,harmony with the building perfectly
3.Intelligent control and automatic operation
4.Multifunction:bathing,washing,domestic heating etc
5.Work at anytime and enjoyable
Capacity:100L/150L/200L/250L/300L/400L/500L

product model	100L	150L	200L	250L	300L	400L	500L
inner vessel diameter(mm)	φ370	φ370	φ470	φ470	φ470	φ600	φ600
water tank dimension(mm)	φ470	φ470	φ560	φ560	φ560	φ700	φ700
material and thickness of the inner vessel	SUS304 1.2	SUS304 1.2	SUS304 1.5	SUS304 1.5	SUS304 1.5	SUS304 2.0	SUS304 2.0
material and thickness of the shell	Color Steel0.55	Color Steel0.55	Color Steel0.55	Color Steel0.55	Color Steel0.55	Color Steel0.55	Color Steel0.55
layerinsulation thickness(mm)	50	50	45	45	45	50	50
connector size of inlet&outlet	3/4"	3/4"	1"	1"	1"	1"	1"
connector size of copper coil	1/2"	1/2"	1/2"	1/2"	1/2"	1/2"	1/2"
rated heating power	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
Overall dimension(references)(mm)	φ470×1040	φ470×1440	φ560×1260	φ560×1520	φ560×1810	φ700×1550	φ700×1850
Packing case size(mm)	550×550×1120	550×550×1500	640×640×1330	640×640×1600	640×640×1870	780×780×1650	780×780×1950

---
