US$1,500.00-9,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Carrying Capacity
Middle-Level
Transport Package
Sea, Air and Land Transport
Specification
5.20*1.75*2.10
Production Capacity
12000pieces/Year
Product Description
Product Description

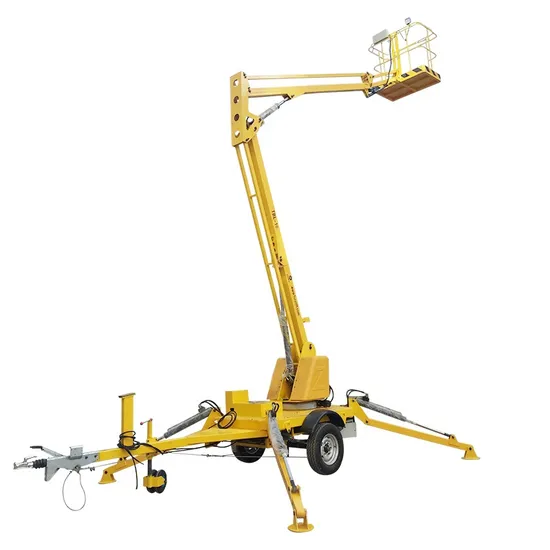

Trailer mounted boom lift
The lift arm series has the advantages of compact structure, using a new type of high-quality steel high strength, light weight direct access to AC power to start, set up fast automatic hydraulic support feet can quickly set up safe and simple operation.The working table can be raised and the horizontal extension span is large. and the working area is increased; and the platform can be rotated. Easy to cross the obstacles and reach the working position, is the ideal equipment for climbinq. The transportation is convenient direct fast trailer, trailer speed up to 90km/h.
Self-Propelled boom lifting platformThe folding arm aerial vehicle is widely used in the installation maintenance and dimbing of municipal electric pcwer, street lamp, advertisement communication, photography, gardening, folding arm aerial vehicle, wharf. Airport port, large industrial and mining enterprises and other industries.It is suitable for all kinds of rugged terrain in the field and has a wide range of space operations It is mainly used for constivctioa bridge construction, shipbuilding, airport, mine, port wharf, communication and power facilities construction and outdoon advertising of engineering machinery and equipment.Diesel folding arm elevator: No external power supply, suitable for field aerial erection operation, using diesel engine pov\e to drive walking and lifting, large pcwerz fast walking speed.
Product details
Specification
| diesel |
| model | platform height(m) | working height (m) | dimension (mm) | woking platform size(mm) | diesel | weight (T) | maximum operating radius(m) | load (kg) |
| QBJ0.3-14 | 14 | 16 | 6100*1900*2700 | 1000*650*1000 | 22 | 3.8 | 8.1 | 200 |
| QBJ0.3-16 | 16 | 18 | 6500*1900*2700 | 1000*650*1000 | 22 | 4.2 | 9.3 | 200 |
| QBJ0.3-18 | 18 | 20 | 6800*2000*2800 | 1000*650*1000 | 22 | 4.7 | 12 | 200 |
| QBJ0.4-16 | 16 | 18 | 6500*2000*2850 | 1000*650*1000 | 52 | 5.5 | 9.3 | 200 |
| QBJ0.4-18 | 18 | 20 | 6800*2220*2900 | 1000*650*1000 | 52 | 5.8 | 12 | 200 |
| QBJ0.4-20 | 20 | 22 | 7200*2220*2950 | 1000*650*1000 | 52 | 6.5 | 9.3 | 200 |
| battery |
| model | platform height(m) | working height (m) | dimension (mm) | woking platform size(mm) | battery | weight (T) | maximum operating radius(m) | load (kg) |
| QBJ0.3-14 | 14 | 16 | 6100*1900*2700 | 1000*650*1000 | six 12v*200ah | 3.8 | 8.1 | 200 |
| QBJ0.3-16 | 16 | 18 | 6500*1900*2700 | 1000*650*1000 | six 12v*201ah | 4.2 | 9.3 | 200 |
| QBJ0.3-18 | 18 | 20 | 6800*2000*2800 | 1000*650*1000 | six 12v*202ah | 4.7 | 12 | 200 |
Company Profile
Jinan Tuhe is a domestic professional manufacturer of hydraulic lifting platforms, located in the "Hometown of China's Lifting Platform Manufacturing---Jiyang". We have a strong technical team, has developed a variety of hydraulic lifting platform products, has made a number of technical improvements, has a greater advantage in intelligence and reliability, and has applied for a number of technical patents, becoming a rising star in the industry. We independently developed and produced scissor lift series, aluminum alloy lift series, rail-type lifting platform, cylinder lift series and boarding bridges. Products are widely used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations, stadiums, overhead pipelines and other high-altitude equipment installation, maintenance, cleaning and other scenarios, and also used in lifting equipment maintenance, field power equipment maintenance, etc.
