High-Efficiency Eddy Current Separator Sorting Metal for Plastic Pet Flakes Sorting Line

Product Description

PVC Sorting Waste Plastic Recycling Machine

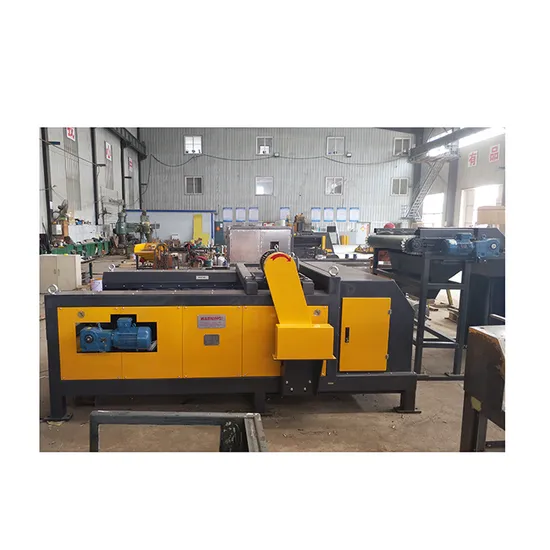

PET Aluminum eddy current separator
PET scientific name polyester, is a crystalline thermoplastic resin, pet plastic is mainly used to make films, bottles and so on. About 27 million tons of PET are used worldwide each year, and most of them (about 23 million tons) are used to make bottles. With the increasing consumption of pet bottles, their recycling is becoming increasingly important.
PET bottle processing and cleaning are mainly divided into sorting, crushing, pre-washing, main washing, rinsing, sorting and other steps. The perfect recycling and sorting of plastic bottles is to separate the doped PVC, other polymer bottles and Colored bottles and metal impurities are sorted out. There are still about 0.5% of iron and aluminum flakes in PET bottles that are often processed. If you use a light separator to sort directly, about 5 times the amount of PET bottles will be entrained while the metal is sorted. The best process plan is to enter the eddy current sorter with iron removal function before the light sorting, sort the iron pieces and aluminum pieces in the bottle pieces, and then enter the light sorting machine to sort other sundries. To achieve the best sorting effect.
Our eddy current separator has an iron removal efficiency of more than 99%, a single-piece aluminum removal rate of more than 90%, and a bottle fetch rate of less than 0.2%.
The picture below is a physical picture of the selected aluminum sheet. The minimum aluminum sheet size is about 2mm.

Model	ECS100A	ECS120A	ECS140A	ECS150A
Belt width (mm)	100	1200	1400	1500
Processing capacity (t/h)	0.8-1	1.2-1.5	1.5-2.5	2-3
Driving power (kw)	4.0+1.1+0.15*2	5.5+1.5+0.25*2	7.5+1.5+0.25*2	7.5+1.5+0.55*2
Weight (kg)	1800	2200	2500	2500
Dimensions L * W* H (mm)	3670×1650×2035	3670×2000×2035	3670×2300×2035	3670×2300×2035

If the above specifications cannot meet your needs, we can provide customized designs according to user requirements.
Fushun Ejet Machinery Co., Ltd. is located in the national advanced energy equipment high tech industrialization base Fushun Economic Development Zone is an enterprise specializing in the R & D and manufacturing of magnetic separation equipment and resource recovery equipment. Its products are widely used in solid waste treatment, metallurgical mines, power plants, coal mines and other industries. The main products of the company are the complete set of special solid waste separation equipment such as scrap crushing tailings automatic separation line, papermaking waste separation line, waste plastics separation line and eddy current separator, magnetic separation machine Machine, stainless steel separator and other magnetic separation equipment
Try to Read This -------Our Service
1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.

Why choose EJET
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder

---
