Mining Ore Machine/Crusher/High Capacity Hydraulic Cylinder Gp Cone Crusher

Product Description

Company Profile
Atairac Engineered Products Inc China is High-tech enterprise which specialized in the R&D, manufacturing, project planning and construction design, process design and system intelligence of various minerals and rocks for crushing, grinding, screening, feeding, conveying, environmental dust removal and other equipment.
Atairac has a strong technical team, reliable production and processing equipment, efficient service construction team. From understanding to solving the customer needs, Atairac is committed to the combination of advanced, practical, efficient design concepts and reliable performance equipment, to provide customers with integrated mobile type, intelligent module, cost-effective crushing and screening system.
Product Description
GPY cone crusher is a high efficiency and energy saving medium and fine crushing hydraulic cone crusher. It is a large-scale and high-energy lamination cone crusher newly developed by our company. The main shaft adopts a simple support beam structure, which increases the strength of the crusher, the internal space is larger, and the production capacity is higher. We improve the crusher performance by improving the structure of the crusher and optimizing the mechanical parameters, thereby fundamentally improving the crushing capacity of the crusher. In addition, the reasonable adjustment structure and the advanced hydraulic control system greatly improve the intelligence and humanization of the equipment, reduce the labor of the workers, and shorten the time for repairing and replacing the wearing parts on site.

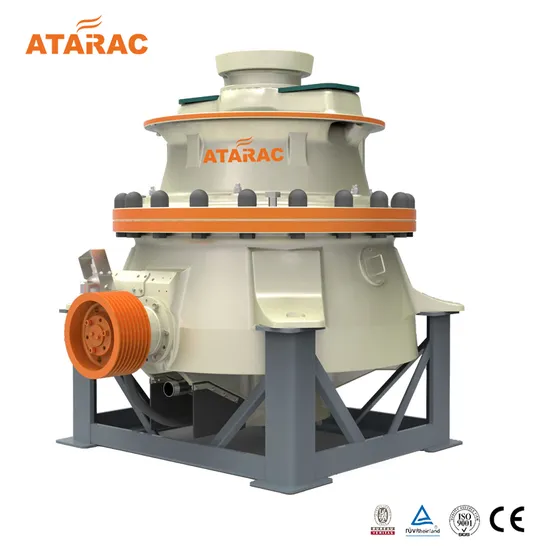

Products Pictures

Product Characters
1. The combination of higher speed and larger stroke makes the GPY cone crusher greatly improved in power rating and throughput, making it the most productive crusher in the same specification and getting the maximum yield in the smallest space. The GPY cone crusher can work under a constant discharge opening, avoiding the fluctuation of the discharge opening during the production process, which improves the stability of the entire production process. In addition, the iron protection device ensures that the crusher can be immediately reset after passing through the iron block, maintaining a stable discharge opening. The GPY800 cone crusher produces thinner products with fewer crushing stages, reducing costs and saving energy.
2. The two-way iron-releasing hydraulic cylinder can let the iron block pass through the crushing chamber without stopping caused by over-clamping. The hydraulic cleaning of the crushing chamber has a large stroke and is independent of the wear of the lining, which reduces the amount of work required to remove the clogging material in the crushing chamber and can quickly clear the cavity, thereby reducing downtime and reducing the workload of the operator.
4. The advanced lining fixing technology improves the reliability of the lining plate. The lining plate is locked by bolts and nut cones, so there is no need for glue filling, making it reliable use and easy maintenance.
5. The bronze bushing of the GPY cone crusher can provide greater load capacity in a vibrating environment with large vibration and dust. Moreover, the bronze bushings are low in cost and can be replaced with ordinary tools.
6. All parts of GPY cone crusher can be disassembled and maintained from the top or side. It is convenient to disassemble the moving cone and the fixed cone, which can be realized by only disassembling the upper and lower frame bolts, and it is more convenient to replace the lining plate daily.
Function and Performance
GPY cone crusher is suitable for medium and fine crushing of medium and hard materials. It not only provides high output and reduce operating costs, but also is easy to maintain and has long maintenance intervals.
Specifically it has the following performance characteristics: The crushing stroke (that is, the larger the eccentric amount) is larger, 1.5 times that of the ordinary cone crusher, so that the cone crushing force is larger, the laminating crushing effect is better, the larger output can be achieved, and the final product shape is better, bringing less damage to liner wear. Small footprint, less maintenance space, low overall height, and easy assembly and disassembly. GPY cone crusher can achieve high crushing ratio and low cycle load, and the final product rate is higher, achieving superior continuous crushing and effectively reducing energy consumption. Product Parameters
Technical Specification(GPY100S,GPY200S,GPY300S)

Model	ECC. mm	Feed opening(mm)		Power kw	CSS(mm)/ Throughput Capacity(t/h)
		C	EC		25mm	30mm	35mm	40mm	45mm
GPY100S	20	250		90	115-125	140-150	155-175	165-195	180-210
	25					180-190	195-215	205-225
GPY200S	25		330	160		165-215	185-235	205-255	225-275
	32						225-275	265-315	275-345
GPY300S	32		380	250			350-390	270-410	390-430
	40							440-490	470-520

Note: C= Coarse, EC= Extra Coarse

Technical Parameters(GPY100,GPY200,GPY300)

Model	ECC. mm	Feed opening(mm)						Power kw	CSS(mm)/ Throughput Capacity(t/h)
		EF	F	MF	M	C	EC		8mm	10mm	15mm	20mm	25mm	30mm	35mm
GPY100	20	40	50	100	130		150	90	45-50	45-55	65-75	90-100
	25									50-60	70-85	100-115
GPY200	25		70		130		210	160		85-105	105-125	125-150	155-175	180-205
	32										135-155	165-185	185-215
GPY300	32		60	100	130	180	260	250	100-200	110-140	155-185	185-215	220-250	255-285	290-320
	40									140-160	195-225	235-265	280-310	315-345

Note: EF= Extra Fine, F= Fine, MF= Medium Fine, M= Medium, C= Coarse, EC= Extra Coarse

Technical Parameters(GPY500S,GPY700,GPY1000)

Model	Power (kw)	Chamber Type	Max. Feed Size(mm)	CSS(mm)/ Throughput Capacity(t/h)
				41	44	48	51	54	60	64	70	76	83
GPY500S	315	EC	560	349	368-460	392-588	410-718	428-856	465-929	489-978	525-1050	562-983	604

Technical Parameters(GPY500,GPY800,GPY1000)

Model	Power (kw)	Chamber Type	Feed opening (mm)	CSS(mm)/ Throughput Capacity(t/h)
				10 mm	13 mm	16 mm	19 mm	22 mm	25 mm	32 mm	38mm	44 mm	51mm	57mm	64mm	70mm
GPY500	315	EC	275			172	185-333	198-431	211-460	241-542	267-600	293-657	328-511
		C	215			165-185	180-362	190-475	204-505	237-580	258-638	283-507	317-353
		MC	175			157-248	170-421	181-450	193-480	220-550	244-494	268-360
		M	135			192-290	206-435	221-465	235-495	270-497	297-398
		MF	115		188	202-364	217-391	232-418	247-445	282-446	314-358
		F	85		190-300	205-323	220-347	236-371	251-395	287-396	318
		EF	65		206-288	222-311	240-293	256-290
GPY800	560	EC	300					443-584	472-844	540-963	596-1065	653-1167	720-1286	777-1388	844-1506	901-1326
		C	240				400	428-631	456-888	520-1013	576-1120	631-1227	695-1352	751-1460	815-1456	871-1281
		MC	195				375-435	401-718	427-832	487-950	540-1050	591-1150	652-1267	703-1368	764-1365	816-1201
		M	155				400-563	423-780	455-836	514-948	568-1050	623-1150	687-1266	741-1367	805-1243	860-1093
		MF	100			374-420	402-711	429-760	457-809	522-923	847-937	633-784	697
		F	90		352-390	380-650	410-700	437-747	465-795	530-907	587-852	644-713
		EF	80	275-400	300-511	323-553	347-593	371-635	395-657	450-770	498-728	546-664
GPY1000	750	EC	370						390-454	444-1304	490-1441	538-1580	593-1740	641-1878	696-2038	743-2176
		C	330					392	417-770	477-1400	527-1547	578-1695	637-1868	688-2015	747-2188	798-2137
		MC	300				337-508	360-847	384-1227	438-1400	485-1547	531-1695	586-1868	632-2015	687-2000	798-1734
		M	230			262-306	282-665	302-946	321-1101	367-1256	406-1390	445-1521	491-1676	530-1810	575-1795	715-1560
		MF	160		200	215-509	232-685	248-916	264-975	300-1120	334-1230	366-1347	404-1485	436-1602	593-1391	633-1165
		F	120		243-284	263-665	282-833	302-890	321-947	367-1080	406-1160	445-1046	491-822	530-620
		EFX	100		208-418	223-661	240-710	247-758	273-807	312-921	346-990	380-891	418-700	452-528
		EF	85	180-240	196-580	211-626	227-673	238-715	260-765	296-873	328-965	360-1058	396-1165	428-1005	465-857	497-664
		EEF	75	175-470	188-560	204-603	220-648	234-692	250-737	285-841	316-850	346-756	382-575	412

GPY Cone crusher particle size curve Products in factory

(finished products) Application Site

Factory base
