US$1,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Intake Width
1200 1600 1800
Motor Power
2*45 2*75 2*90
Mpeed of Mainshaftsure
12-16 12-18 8-10 5-8
Hobbing Cutter Diameter
400 500 600
Applied Range
Car Wheels, Aluminum Engines, Motorcycle and Other
Texture of Material
Steel
Transport Package
Wooden Crate
Specification
2650mm*1550mm*990mm
Production Capacity
100000
Product Description

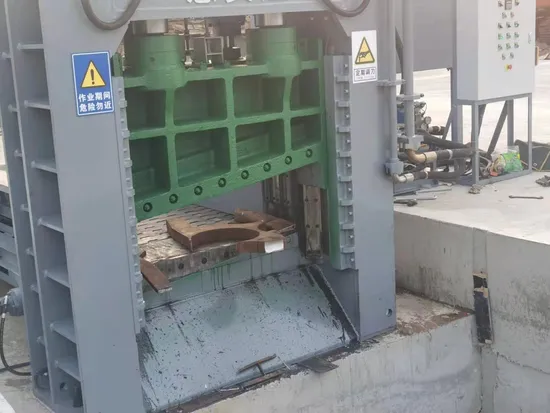

Product Feature Hydraulic Gantry Shearing Machine
Hydraulic Gantry Shearing Machine is suitable for pre compression and shear of various low-carbon scrap steel, scrapped automotive casings, metal structural components, etc.
The product has the following characteristics:
1. Install high-strength wear-resistant alloy steel plates in areas prone to wear and tear, effectively extending the service life of the equipment;
2. The shear slider guide rail and shear oil cylinder adopt automatic lubrication to prevent dry friction damage;
3. The intelligent control system provides optimal shear control and reduces the idle stroke of the shear cylinder;
4. The maximum cutting angle can reach 12 degrees, with strong cutting ability.
Own brand as manufacturing also accepts OEM/ODM
Product Parameters
Model | Parameter | (t/h) Maximum output (t/h) | (mm) Scissor width (mm) | (mm) Minimum opening (mm) | (mm) Shearing capacity(mm) | (/min) Shear frequency(times/min) | (mm)Silo size(mm) | Main motor |
| Shear force | Pressing force | round steel | square steel | steel plate |
| Q91Y-400 | 400 | 70 | 3-4 | 1300 | 370 | φ65 | 50×50 | 35×800 | 3~4 | 4000×1400×400 | 2×30KW |
| Q91Y-500 | 500 | 140 | 6-10 | 1700 | 480 | φ90 | 80×80 | 50×1000 | 3~4 | 6000×1600×800 | 2×45KW |
| Q91Y-630 | 630 | 140 | 8-12 | 1720 | 580 | φ120 | 100×100 | 55×1200 | 3~4 | 8000×1600×850 | 3×45KW |
| Q91Y-700 | 700 | 220 | 12-15 | 1920 | 580 | φ140 | 120×120 | 60×1900 | 3~4 | 8000×2000×900 | 5×45KW |
| Q91Y-800 | 800 | 280 | 15-20 | 2130 | 680 | φ160 | 140×140 | 70×1900 | 3 | 8000×2000×900 | 5×45KW |
| Q91Y-1000 | 1000 | 300 | 18-23 | 2130 | 680 | φ180 | 150×150 | 80×1900 | 3 | 8000×2000×1200 | 7×45KW |
| Q91Y-1250 | 1250 | 400 | 20-25 | 2130 | 680 | φ210 | 180×180 | 110×1900 | 3 | 10000×2500×1200 | 8×45KW |
| Q91Y-1500 | 1500 | 500 | 24-30 | 2130 | 680 | φ225 | 200×200 | 130×1900 | 3 | 10000×2500×1200 | 10×45KW |
| Q91Y-2000 | 2000 | 700 | 30-38 | 2130 | 680 | φ250 | 220×220 | 150×1900 | 3 | 10000×2500×1200 | 12×45KW |
Product Description FAQ
1.Which country have been exported?
Russia, USA, Canada, Japan, Korea, Malaysia, Hong Kong, Taiwan, India, Indonesia, Australia, New Zealand, Israel, South Africa etc.
2.How about the Shipment?
Shipment can be made by sea, air or land. Sea loading ports include Qingdao, Yantai and Shanghai etc. Sales manager will select an
optimal shipping method for you. For more information, please contact us.
3. How about the package?
Our attachments are packaged by standard export wooden cases free from fumigation.
4. How about delivery time?
Usually 15 days subject to order quantity. Due to the surge in orders, please check with customer service staff for lead time.
>>
