Desktop CO2 Laser Engraving Machine 5030 Mini Size

Product Description

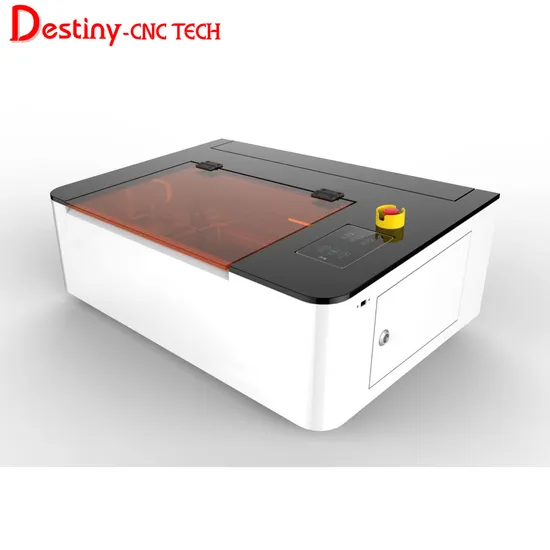

DT-5030 Desktop CO2 Laser engraving machine
Machine Features
1. Desktop CO2 laser engraving cutting machine has 2 optional sizes: 500x300mm, 600x400mm. Compact design takes small space and save shipping fee. It is good choice for small shops, home business, hobbies and education, etc. 2. CO2 laser tube power from 40W to 80W optional. Applicable for engraving and cutting various nonmetallic materials, like acrylic, plexiglass, wood, rubber, pvc, leather, paper, stone, glass, etc. 3. Fast engraving speed maximum 1000mm/sec. 4. Desktop CO2 laser engraving cutting machine is a whole set machine including laser tube, water cooling system, air blowing pump, etc. to ensure machine running. 5. Some optional functions like red dot pointer, rotary provide more convenience and applicable range.
Technical Parameters

Model	DT-5030
Laser power	40w, 50w, 60w,
Laser type	CO2 glass laser tube, wavelength 10.6μm, water-cooled
Engraving speed	0-60000mm/min
Cutting speed	0-30000mm/min
Repeating location	≤±0.01
Transmission type	Belt transmission
Driving system	Stepper motor
Machine table	Blade table (alternative: honeycomb table)
Graphic format supported	*.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
Software supported	CoreDraw,Auto CAD
Control system	POWERCUT 7142G, RUIDA RDC5121 Control system
Laser power	0~100% adjustable
Minimum letter size	Chinese 2.0x2.0mm, English 1.0x1.0mm
Working voltage	Single phase 220V/50Hz (Optional: 220V/60Hz)
Working condition	Temperature 0~45 Celsius; Humidity 5%~95% no condensation

CO2 Laser working capacity
Machine configuation details
Samples
Warranty and after-sales service
1. Two years guarantee for the whole laser machine, the CO2 laser tube warranty is 6-10 months. If the machine is with any problem, our technician will help to solve online first time. If the laser tube is with problems , we need you to take one video with the tube working situation, brand label ,tube double metal sides, mirror inside of tube etc. details. After confirming by RECI tube company , they will free change new one for you and send to you by express.
2. We have got CE&FDA certificate, all the machines are produced according to standard to keep the quality.
3. We have excellent English technician team , they are available at 24 hours online .No time difference limitation . Can supply the solution for any problems. In addition ,appoint technician to your country is available if you need .
4. There are detail machine operation manual sent together with the machine and pdf. file .

---
