Automatic Paper Salad Bowl Making Machine with Oil Lubrication/ Paper Fan Feeding

Product Description

A.CHARACTERISTIC OF New Type High Efficient Paper Bowl Manufacturing machine

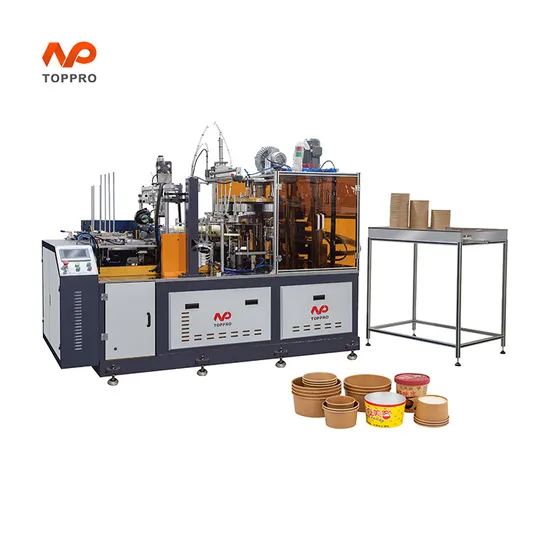

DW-50 Middle-speed paper bowl forming machine is a machine that developed on the technique of Korea machine. It has the function of automatic paper feeding, preheating, sealing, oil injection, bottom cutting, heating, knurling, curling, and so on. It can alarm via sensor checking, counting and collecting itself. WJ-80 paper bowl machine is an equipment both for single and double PE coated paper bowl, making soup bowls and noodles bowl etc.

Name	Automatic Salad bowl making Machine
HS Code	8441309000
Model	DW-50
The machine includes: Finished Bowl Collect System
Paper bowl Size	Maximum bottom diameter 165mm
	maximum top diameter 185mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	50-60pcs/min
	Speed of 20 hours stable running per day
Suitable paper weight	170-350gsm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.6-0.8Mpa, 0.4m3/min User should buy Air Compressor
General power	11kw
Net weight	3500kgs
Measurement (mm)	2650*1600*1800
Cup Side Sealing	Ultrasonic
We can customize machine and mold according to customer's requirement.

B.Main Advantage for WJ-90 paper bowl making machine
Separated curling from knurling and heaters Directly bottom paper feeding system
makes less noise and more stable can reduce the wastage of bottom paper

Control panel use touch screen, a clearer vision Full automatic lubrication by oil pump and filtration

The core components adopt open cam design, with gear motor
The machine is controlled by PLC, and has a encoder to control
the working of ultrasonic, sensors, solenoid valve and so on, to make the running of each process more accurately. Collecting system
New-type stable collecting system solves the collecting problem of the paper bowl totally, reduce the packing labor and improve the working efficiency.
Two options for collecting bowls, you can choose collecting tabe or robot arm.

E. COMPANY OTHER REALATED MACHINE
we also have paper cup machine,paper die cutting machine,paper sleeve machine,paper bowl machine etc,can provide you full paper cup production line,if you are interested,pls feel free to contact me.

F. Packing details
Ourmachine will pe packed with strong woodencase, also will send you english manual,electric diagram,operation CD,can teach you how to operate the machine and
change mold.
G. AFTER SERVICE
1. Paper Cup forming Machine warranty: 1 year
2. the guide booklet will be sent with machine to guide the installation
process works, adjust the whole machine, production,
3. we will adjust the machine well for one week before the delivery,
4. we can dispatch technologists to buyer's factory, guiding installation, ajustment for a period,
5. we supply the free training of buyer, the training won't stop until the buyer control the whole leson!
6. we supply the consumable spare parts for free for one year use.
H. FACTORY VIEWE
Ruian Lifeng Machinery Co., Ltd (old name: Ruian Sincere Machinery Co., Ltd. ) is a manufactory specialize in producing series of automatic machinery for paper contaciners like paper cup making machine, paper bowl forming machine, ice cream cone sleeve machine, die punching machine etc. Especially the water cone cup machine, we get the patent in China. And all of our products have past CE, SGS. In last 10years, we exported to all of the world and get good feedback from our customers.
We pursue "quality first, service paramountcy". Welcome the clients at home and abroad to negotiate and cooperate.
I. Questions & Answers for high speed paper cup machine Q1. Are you trade company or factory? We are factory, not trade company.
Q2. What certification do you have?
We have CE, BV and SGS certification.
Q3. What is your delivery time?
Our mahcine need 25 -30 days in normal,
if your order is urgent, we can descuss aout that.
Q4. What is the HS code?
Our machine HS code is 8441309000
Q6. When the machine have problems,how you can sove it?
Firslty,we have 1 year warranty,we can provide comsumable spare parts for free
Secondly,all machine will be insatalled and test well in factory,we will test machine for one week,and make sure when you receive machine,can start prodcution at once,
Thirdly,if when you receive machine,the machine can not run well,then you can send video and photo to us,we are 24 hours avaliable for you,and will teach you step by step,help you slove problem,
Forthly,if the machine problem,you can not slove it by yourself,then we can dispatch the engineer to your factory,
Q7. What is the manual and instruction language?
The manual and instruction all will use english language,if you want use your country language,it also can be customized,and we also will send you a operation video,teach you how to change mold and operate machine.
Q8. Can we make different size in one machine?
High speed paper cup machine only can one machine one size,not adjust change mold
Q9,what is the meterial is avalisable for this machine?
The material is pe coated paper,normally all buy the printed and cutted paper cup fan from paper factory,i can introduce you some good price paper factory.
Q2. where is your factory and how to get there?
Our factory location is 7# yongding road, songjiadai industrial park, feiyun town, ruian city, zhejiang province. china
you can by plane from your country to wenzhou city airport, then we will pick you up by car.
If you are interested in our machines,please don't hesitate to contact me!
Contact Supplier: Anncy Chen(Miss)

---
