US$80,000.00-85,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Automatic Grade
Automatic
Certification
CE, ISO 9001, ISO 14000
Transport Package
Wooden/Iron Bracket/Wooden Box
Specification
4220*2680*3070mm
Origin
Changzhou, Jiangsu, China
Production Capacity
3000set/Year
Packaging & Delivery
Package Size
348.00cm * 285.00cm * 307.00cm
Package Gross Weight
6500.000kg
Product Description

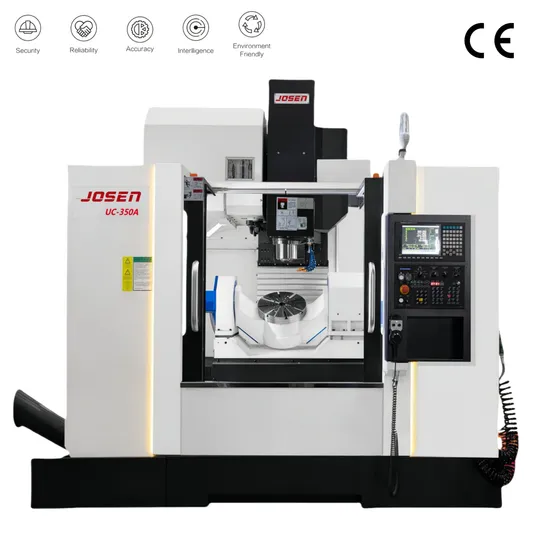

VMC350 Siemens Controller CNC Vmc Machine Milling 5 Axis CNC Milling CNC Machine Price
Product Description
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Basic Info
| Number | Name | Number | Name |
| 1 | FANUC 0I-MF CNC controller | 10 | Chip pan and water tank |
| 2 | Full cover shroud | 11 | Transformer |
| 3 | Automatic lubricant system | 12 | Spindle air curtain dust protection system |
| 4 | Ground bolts and spacers | 13 | Mechanical, electrical and operating instructions |
| 5 | Tool-box | 14 | Rigid tapping |
| 6 | Working light | 15 | Electrical box heat exchanger |
| 7 | Warning light | 16 | Machine cleaning water gun |
| 8 | M30 automatic power-off system | 17 | Three-axis slide telescopic shield |
| 9 | Portable chip blowing air gun | 18 | 30-blade arm type tool magazine |
Can be loaded into standard containers and will save at least $2000 in shipping costs. Product Parameters
| description/machine model | Unit | UC-350A |
| Itinerary |
| X-axis travel | mm | 700 (total stroke up to 780) |
| Y-axis travel | mm | 520 |
| Z-axis travel | mm | 550 |
| Distance from spindle nose to table surface | mm | 40-590 |
| Workbenches |
| Table size (X*Y) | mm | ∅ 350 |
| Table T-slot dimensions (width*number of slots*spacing) | mm | 12/8* 45 degrees even |
| Maximum load capacity of the table | kg | 100 |
| Spindle |
| Spindle motor (continuous/30 minutes) | kW | 11/16.5 |
| Spindle speed | rpm | 10-10000 |
| Spindle inner taper bore | | BT40 |
| Three axes | | |
| X/Y/Z axis motor | kW | 5.9/5.9/5.9 |
| Feed rate |
| Rapid feed rate (X/Y/Z) | mm/ min | 36000/36000/36000 |
| Fastest cutting feed rate | mm/ min | 1-10000 |
| Tool change system (optional) |
| Tool magazine capacity (standard/optional) | set | 24/30 |
| Tool magazine form | | Tool-arm type |
| Latin form | | MAS-P40-1(45°) |
| Maximum tool diameter of adjacent tools | mm | ∅80 |
| Maximum tool diameter of the empty neighboring tool | | |
| mm | ø150 |
| Maximum tool length | mm | 300 |
| Maximum tool weight | kg | 8 |
| :: Machine tool accuracy |
| Three-axis laser positioning accuracy (JIS6338 measurement method) |
| Positioning accuracy (full stroke) | mm | ±0.005 |
| Repeatable positioning accuracy (full stroke) | mm | ±0.003 |
| Systems |
| Controller | | New Generation 220MA-5 |
| Hydropneumatic systems |
| Tank capacity | liter | 250L (side discharge) |
| pneumatic pressure requirements | kg/cm² | 6 |
| Electricity |
| electrical specifications | | AC380±10%, 3-phase, 60Hz/50Hz |
| Electricity demand | KVA | 30 |
| Other |
| Floor space (L*W) | mm | 3450*2825 |
| Machine height (max.) | mm | 3040 |
| machine weight | T | 6.5 |
Detailed Photos
Company Profile
Certifications
Our Advantages
Packaging & Shipping
FAQ
1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
>>
