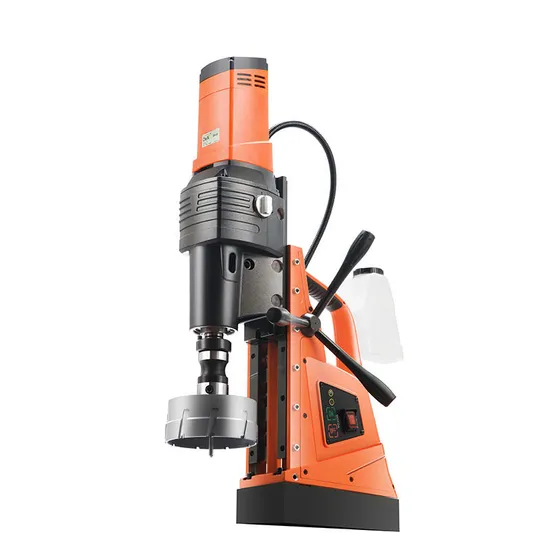

Dx-120 Tool Holder Mt4 High Power Magnetic Drill Press

Product Description

Product Type	DX-120
Motor rated power	2500W
Load speed	80/125/175/300rpm
Tool holder	MT4
Magnetic adhesion	25000N
The max cutter capacity	120mm (4-3/4")
The max cutting depth	100mm (4")
The max diameter of twist drill	42mm (1-11/16")
The min cutter depth	15mm
Stroke	220mm
Motor can adjust the height to	600mm
Magnetic drill machine dimension	440*250*580mm
Magnetic base size	280*115*56.5mm
Total weight	48kg
Countersunk drilling	10-80mm

1	Split type machine body, in order to ensure sealing, there have a sealing groove design between body and cover.
2	The control panel is designed with the combination of mechanical ship switch and micro film switch.
3	Rigidity Design of DX-120 Magnetic drill machine: (1) 2500W high-power motor to meet high-feed drilling condition. (2) 20000N magnetic base suction, higher than most same model in the market. (3) High tooth ratio gear transmission design, spindle output torque up to 170Nm. (4) Adopt MT4 main shaft, can bear more torque.
4	Double dovetail design, economic and practical.
5	Elastic adjustment function of guide rail, make the force more uniform on cutting tool when drilling.
6	Gear box cooling pipe perforation design, to meet customer requirements for different arbor, different habits of use.
7	The enclosed and guided structure of air outlet to reduce lateral air flow at front operating position and handle.

Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. Drafting unit for Chinese industrial standard of annular cutter.
Our products include high efficiency energy saving annular cutter series that won the single industry
champion, and rail cutter, hole saw, and self-developed magnetic drilling machine series.
In addition, a series of high-precision tools, spade drill, BTA deep hole drill, S drills, and milling cutter have been added.
The company has modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, From raw material testing, blanking, rough processing, heat treatment, finishing processing to finished product inspection and testing, and all the production processes are completed by our own factory. For you, which means: The most reliable products supply and the fastest delivery time.
After many years of technological innovation and development, the company has more than 110 core independent intellectual property rights patents, including 10 invention patents. The company implements a strict quality management system and has successively passed the ISO9001 quality system certification and the ISO14001 environmental system certification.
In the future, CHTOOLS will devote to become a leading international cutting tool manufacturer, provide you with more effective and better services, become your trusted tool supplier.

---
