US$1.70
1,000-9,999 Pieces
Basic Info.
Certification
TUV, RoHS, ISO9001, CCC, Tlc,SGS,Reach,IEC
Test Wavelength
850nm,1300nm
Insertion Loss
Typical≤0.15dB,Max≤0.20dB
Sleeve Material
Ceramic(Zro2)or Customized
Operating Temperature
-20ºC to +70ºC
Storage Temperature
-40ºC to +85ºC
Transport Package
100PCS/Bag
Specification
40.0*30.0*11.0(mm)
Production Capacity
100000PCS/Month
Product Description

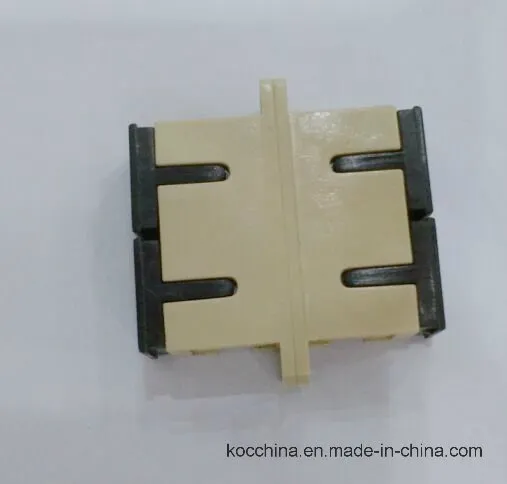

SC duplex fiber optic adaptor, symmetry type
Brief Introduction:
The SC adapters are use ceramic sleeve to connect connectors although they are different size and appearance. Each species has a lot of types and colors can be chose. Single mode and multi-mode are different performance and price. These adapters can locking the connectors and get low insertion loss to transmission optical signal,ARK's adapters are meet the Telcordia and IEC-61754 stander, all material compliance RoHS require.
APPLICATIONS:
1.Test equipment.
2.Connection of optical links in optical active devices
3.Jumper connection
4.Production and testing of optical devices
5.Optical fiber communication system,CATV
6.LANs and WANs
7.FTTX
8.CATV
9.Active device/Transceiver
10.Telecommunication networks
11.Metro
12.Multimedia
13.Data processing networks
14.Test equipment
15.Premise installations
16.Gigabit Ethernet
17.Video
FEATURES:
1.Low insertion loss and back reflection loss
2.Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
3.High precision alignment
4.Compact design
5.Plastic housing
6.Great repeatability and interchangeability
7.Hign reliability
8.Compliant with IEC and Rohs standards
Specifications:
| ITEM | parameter | |
| item | single-mode | multi-mode |
| adapter color | blue,green | beige,magenta |
| test wavelength | 1310nm,1550nm | 850nm,1300nm |
| insertion loss | typical≤0.15dB,MAX≤0.20dB | typical≤0.15dB,MAX≤0.20dB |
| Repeatability | ≤0.10dB | |
| interchangeability | ≤0.20dB | |
| durability | ≤0.20dB,max change 500mating | |
| adapter type | SC/ST/LC/FC | |
| channels | simplex,duplex,4channels | |
| material | plastic or metal | |
| sleeve material | ceramic(ZrO2)or customized | |
| operating temperature | -20ºC to +70ºC | |
| storage temperature | -40ºC to +85ºC | |
Pictures:
Our Sevice:
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
Thank you for viewing!
Please feel free to contact us if you have any questions!
Welcome to visit our website:http://kocchina.en.made-in-china.com
>>
