SA2200 Class a Power Quality Analyzer with Strong Logging Function

Product Description

Overview
SA2200 Power Quality Analyzer is the professional potable device to measure and analyze the power system quality, supply the harmonics analysis and power quality data analysis, also provide big memory for the data storage, which is used to make the long term logger measuring to power system. Design Features
Class A compliance under international standards
Basic voltage measurement accuracy of±0.1%
Special waveform record function
200kS/s sample rate
Support multi language
32GB micro SD card
GPS time synchronization
Product Shows
Specification

Channel(Voltage/Current)		4/4
Voltage Range		1-1000Vrms, 6000V transient voltage
Current Range		depends on supplied current clamp
PC software analysis		Yes
Micro SD card(bulid-in)		32GB
Battery		Lithium ion, 5200mAh/>8h
Time Synchronization		GPS/Beidou(option)

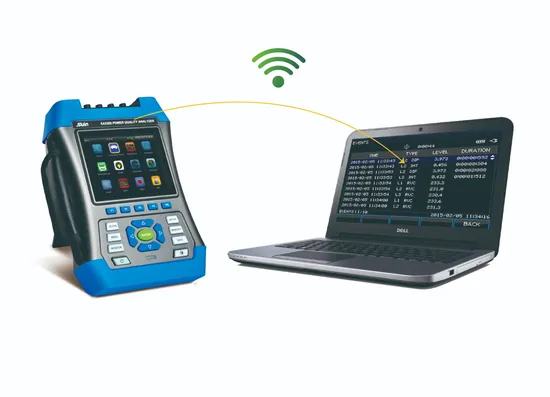

interface		USB Host, LAN, WIFI
WIFI App		(option)
Screen		5.6' TFT LCD with resolution640*480(SA2200)
Language		14-Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese(Brazil/Portugal), Russian, Spanish (Latin/Spain), Turkish
Dimension/Weight		270*190*66mm/2.0kg
Wire Combinatios		1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø WYE, 3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG, 2-ELEMENT, 2 1/2-ELEMENT
Electrical Safety		IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III
Measurement
Voltage/Current/Frequency		Measurement Range	Resolution	Accuracy
Vrms(AC+DC)		1 ~ 120Vrms	0.001Vrms	±0.1% of nominal voltage
		120Vrms~400Vrms	0.01Vrms
		400Vrms~1000Vrms	0.1Vrms
Vpk		1 ~ 1400Vpk	0.01Vpk	±0.5% of nominal voltage
V(Crest Factor)		1.0 ~ >2.8	0.01	±5%
Arms(AC)	10mV/A	0~150A	0.01A	±0.1%±0.1A
	1mV/A	1~2000A	0.01A	±0.1%±0.1A
	65mV/1000A	10~6000A	0.01A	±0.1%±0.2A
A(Crest Factor)		1 ~ 10	0.01	±5%
Frequency		42.5~57.5(50Hz nominal)	0.01Hz	±0.01Hz
		51~69(60Hz nominal)	0.01Hz	±0.01Hz
		320~480(400Hz nominal)	0.01Hz	±0.01Hz
Dips & Swells
Vrms1/2		0 ~ 200% of nominal voltage	0.01Vrms	±0.2%
Arms1/2		depends on current clamps	0.01A	±1%
Harmonic (IEC61000-4-7)
Harmonic Number		1 ~ 100(50/60Hz) (IEC61000-4-7) 1~12(400Hz)
Harmonic Voltage %f		0.0 ~ 100.0%	0.01%	±0.1% ± nx0.1%
Harmonic Current %f		0.0 ~ 100.0%	0.01%	±0.1% ± nx0.1%
THD		0.0 ~ 100.0%	0.01%	±2.5%
Phase		-180° ~180°	0.1°	± nx0.1°
Power and Energy
P, S, Q1		Max. 6000MW	0.1kW	±1%±10 digits
PF & cosФ		0 ~ 1	0.01	±0.01
kWh, kVAh, kvarh		depends on nominal voltage and current clamps		±1%±10 digits
Flicker (IEC61000-4-15)
Pst(10min)/Plt (2 hrs)		0.00 ~ 20.00	0.01	±5%
Unbalance
Voltage		0.0 ~ 20.0%	0.10%	±0.1%
Current		0.0 ~ 20.0%	0.10%	±1%
Voltage Phase		-360° ~ 0°	0.1°	±0.1°
Current Phase		-360° ~ 0°	0.1°	±0.5°
Voltage Transient
Vpk		±6000Vpk	0.01V	±15%
Vrms		10 ~ 1000Vrms	0.01V	±2.5%
Min. Test Time		5us
Inrush Current
Arms		depends on current clamps	0.01A	±1% ± 5digits
Inrush Duration		1 ~ 32min selectable	10ms	±20ms
Mains Signaling
Signaling Frequency		60-3000Hz	0.1Hz
Relative V%		0%-100%	0.10%	±0.4%
Absolute V3s (3s average)		0.0-1000V	0.1V	±5% of Nominal voltage
Logger
Recording		user-defined parameters for 4 phases at the same time
Memory		Data stored in Micro SD card, 32GB
Duration Time		2 hrs to 1 year, depends on the recording items and time interval
Interval		1s to 60 minutes
Monitor
Support EN50160 in default or user-defined standard

Options
About SUIN
Shijiazhuang SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc.

---
