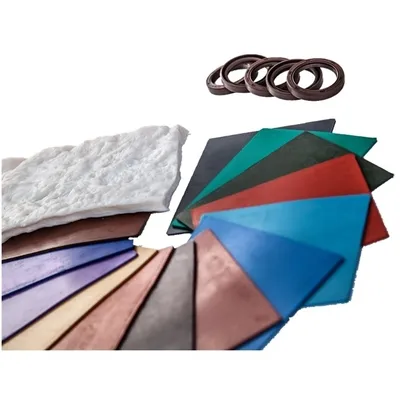

Bisphenol FKM Low Temperature Resistance Dustproof for Automotive Industry O Rings

Product Description

Company Profile
Founded in 2002, headquartered in Chengdu National Industrial Park- Meishan Jinxiang Industrial Park.
The largest FKM manufacturer in China, with the actual output is 5500mt in 2022 which is the total sum of No.2 - No.5. 2 CNAS approved labs; 1 10,000 clarification workshop for smart-wearable devices; 1 100,000 clarification workshop for FKM precompounds and compounds. 13 producing lines for FKM precompounds and compounds. Full producing capacity is 14000mt per year. Product Description
Fluoroelastomer DHF-75611F Typical Properties

F Content	Min 66%
Specific Gravity	Min1.92
Physical form	Slab
Color	VARIOUS
Solubility	Ketones and Esters
Hardness (shore A)	75±5

Instruction DHF-75611F is a fluoroelastomer compound which include copolymer of hexa-fluoropropylene and vinylidene-fluoride, curatives and fillers.
ApplicationsIt is designed for gasket and O-ring, DHF-75611F is compound which could do the final product directly.
Features: Excellent mold release Excellent hot tear resistance Good mold flow Low compression set Packing informationDHF-75611F is package with PE film in carton. The weight is 25kg net per carton. Safety and handling Store in well ventilated place
Smoking is forbidden Strictly in working areas
Avoid eye contact
Wash thoroughly any contacted skin and clothing after handling
Typical Physical Properties
Press Cure 180ºC@5min, Post Cure 230ºC@24hour
Hardness, Shore A 75±5 (ASTM D 412)
Elongation at Break, % Min200 (ASTM D 412)
Tensile, MPa Min11.0 (ASTM D 2240)
Compression set % 200ºC@70hour, Max15 (ASTM D 395 method B Disc)
Low Temperature Resistance
Brittleness temperature, ºC -26 (ASTM D 1329)
Air oven aging ASTM D-537, 230ºC@70h
Hardness change, degree 2
Tensile change % -2
Elongation at break change % 0
Oil resistance ASTM D471 standard, 150ºC@70h
ASTM 1# standard oil
Hardness change, degree 2
Tensile change % 0
Elongation at break change % 0
Volume Change % 0.4
ASTM 3# standard oil
Hardness change, degree 6
Tensile change % -4
Elongation at break change % 2
Volume Change % 2.1


Detailed Photos

Packaging & Shipping
20kgs/25kgs per carton by courier, like FedEx, DHL etc; 500kgs/625kgs/700kgs per pallet for shipping.
Installation Instructions
Certifications
ISO9001, ISO14001, IS016949
Currently has 65 patents, 15 invention patents are under application, participated in the formulation of 4 National Standards.

"Gazelle Enterprise of Sichuan Province"

"Technologically Advanced Little Giant Enterprise"

"National High-Tech Enterprise"

"Key Cultivation New Material Enterprise of Sichuan Province"

"Key New Material Enterprise of Chengdu"

"Transform and upgrading advanced enterprises"

"Enterprise Technology Center of Sichuan Province "

"Member Unit of China Fluorinated and Silicone Association Council "

FAQ

1, What's your MOQ?
BY air MOQ is 20-25KG, by sea MOQ is 100KG.
2, What's your delivery time?
For stock goods, we can arrange delivery within 3 working days, otherwise delivery time is around 7-14 working days.
3, What's your package?
Usually goods are packaged with PE film in carton. The weight is 20-25kg net per carton. 500kgs/625kgs/700kgs in a pallet.
4, How can we select the exactly grade which suit for our usage?
Please contact our sales, we'll recommend suitable grade according to your typical physical properties and other related information.

---
