Aeon 63" X 39" 60 Watt CO2 Laser Tube for Engraving with Ruida Control Lightburn Software Compatible with Windows, Mac Osx, Linux 80W 100W 130W 150W RF30W/60W

Product Description

AEON 63" X 39" 60 watt co2 laser tube for engraving with Ruida Control Lightburn Software Compatible with Windows, Mac Osx, Linux 80W 100W 130W 150W RF30W/60W

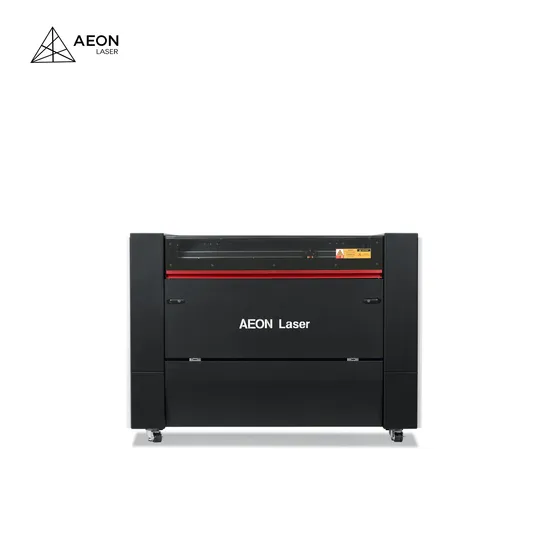

Nova16 Super is the newest co2 laser engraving and cutting machine from AEON Laser. Super Nova16 has a 1600*1000mm working area, and scan speeds of up to 2000 mm/second. SuperNova is the Nova series' upgrade edition. Super Nova16 offers the Metal RF & Glass DC in one machine. The fast machine can meet your needs and brings you more benefits.
Technical Parameters of AEON 63" X 39" 60 watt co2 laser tube for engraving with Ruida Control Lightburn Software Compatible with Windows, Mac Osx, Linux 80W 100W 130W 150W RF30W/60W

	Super10	Super14	Super16
Working Area	1000*700mm(39 3/8″ x 27 9/16″)	1400*900mm (39 3/8″ x 27 9/16″)	1600*1000mm (62 63/64″ x 39 3/8″)
Machine Size	1500*1210*1025mm (59 1/16" x 47 41/64" x 40 23/64")	1900*1410*1025mm (74 51/64" x 55 33/64" x40 23/64" )	2100*1510*1025mm ( 82 43/64" x 59 29/64" x 40 23/64" )
Machine Weight	1000 lb (450kg)	1150 lb (520kg)	1370 lb (620kg)
Work Table	Honeycomb + Blade	Honeycomb + Blade	Honeycomb + Blade
Cooling type	water cooling	Water cooling	Water cooling
Laser power	80W/100W CO2 Glass Tube +RF30W/60W Metal Tube	100W/130W CO2 Glass Tube +RF30W/60W Metal Tube	130W/150W CO2 Glass Tube +RF30W/60W Metal Tube
Electric Up&Down	200mm (7 7/8") Adjustable
Air Assist	105W Built-In Air Pump
Blower	Super10 330W Built-In Exhaust Fan, Super14,16 550W Built-in Exhaust Fan
Cooling	Super10 Built-in 5000 Water Chiller, Super14,16 Built-in 5200 Chiller
Input Voltage	220V AC 50Hz/110V AC 60Hz
Engraving Speed	2000mm/s(47 1/4"/S)
Cutting Speed	800mm/s (31 1/2 "/S)
Cutting Thickness	0-30mm(depends on different materials )
Max Acceleration Speed	5G
Laser Optical Control	0-100% Set by software
Minimum Engraving Size	Minimum Font Size 1.0mm x 1.0mm(English Letter) 2.0mm*2.0mm(Chinese Character)
Max Scanning Precision	1000DPI
Locating Precision	<=0.01
Red Dot Positioning	Yes
Built-in WIFI	Optional
Auto Focus	Integrated Autofocus
Engraving Software	RDWorks/LightBurn
Graphic Format Supported	AI/PDF/SC/DXF/HPGL/PLT/RD/SCPRO2/SVG/LBRN/BMP/JPG/JPEG/PNG/GIF/TIF/TIFF/TGA
Compatible Software	CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software

FAQ 1 Q: Can the machine engrave and cut?
A. Yes, even on the same Job, you can do settings with different colors in the software and also can make holes.
2. Q. Is the machine must work with the computer?
A. Must connect with computer with USB cable when you change the settings of the machine. for the design files, you can transfer the file with a USB memory stick to the machine, Or can download it to the machine directly with a USB cable from the computer.
3. Q. Can the machine be split so it can fit into my doors?
A. Such as laser engraving cutting machine model of WHL3050, WHL4060, which can the legs separate from the main body of the machine.
4. Q. How long has the laser tube been working well?
A. Unfortunately we cannot confirm this.
it is about 4000+ hours for ordinary co2 laser tube 10,000+ hours for Reci brand co2 laser tube 6000+ hours for Pomelo Laser co2 laser tube
5. Q. Can you explain what the differences are between the different watt laser tubes?
A: Usually, the power of a laser tube is decided by two parameters:
1. The length of the laser tube( The longer the laser tube, is the more powerful).
2. The Diameter of the Laser tube (The bigger the laser tube, the more powerful).
AND bigger watt laser tube can cut thicker materials, however, a bigger watt has a big laser beam, therefore, For engraving, It's. better to use small watt laser tube-like 60watt or 80watt.)
6. Q.How do I know the laser tube is nearly used up?
A: The normal color of the laser beam is purple while working. When a laser tube is dying the color will become white

---
