Pharmaceuticals Dry Powder 3D Mixer Mixing Machine

Product Description

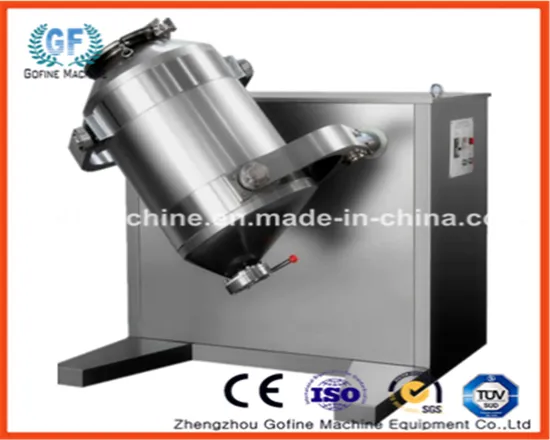

Pharmaceuticals Dry Powder 3D Mixer Mixing Machine
Introduction of Pharmaceuticals Dry Powder 3D Mixer Mixing Machine
This 3D(three-dimensional) Mixer is a high-efficiency mixing equipment, which can be used for powder materials high-uniform mixing in pharmaceutical, food, chemical, light industry, machinery, electronics, mining and metallurgy, national defense industry, scientific research and other enterprises and institutions.
Features of Pharmaceuticals Dry Powder 3D Mixer Mixing Machine
By using the 3D Mixer, there is no centrifugal force in the mixing process, no gravity segregation and stratification, accumulation phenomenon, each component can be uniformly mixed in a wide range of weight ratios, the mixing rate is up to 99.9%.
High loading coefficient up to 80% (ordinary mixer is only about 40%) with short mixing time,It is one of the most ideal mixers.
The 3D mixer has a compact structure and stepless speed regulation (frequency conversion or electromagnetic speed regulation) is adopted for transmission. It is very convenient to operate.
The 3D mixing machine has circular arc transition at all parts, and has been processed by precision polishing to meet the GMP requirement.
The working principle of Pharmaceuticals Dry Powder 3D Mixer Mixing Machine
The mixing barrel is suspended at the end of the main shaft and the driven shaft through two Y-joints, which are intersected and perpendicular to each other in space. When the driving shaft is dragged and rotated, the universal joint causes the barrel to move, rotate and roll repeatedly in space. The material is pushed to make motion in axial direction, radial direction and circumferential direction. So the materials in the cylinder become homogeneous through the impact of flowing, diffusing and adulterating
Applications of Pharmaceuticals Dry Powder 3D Mixer Mixing Machine
1)health food dry powder mixer,
2)jujube powder mixer, grain mixer,
3)all kinds of food materials powder special mixer,
4)rhizome powder mixer,
5)powder fast three-dimensional mixer,
6)laboratory three-dimensional mixer,
7)coffee solid beverage three-dimensional mixer,
8)seasoning three-dimensional mixer
Technical parameters of Pharmaceuticals Dry Powder 3D Mixer Mixing Machine

Model	Max Loading Volume(L)	Max Loading Weight(kg)	Mixing Time (min)	Power (kw)	Dimensions (mm)	Weight (kg)
5L	4.5	4.5	4-6	0.37	600*1000*1000mm	150
15L	13.5	13.5	4-6	1.1	800*1200*1000mm	200
50L	45	45	4-6	1.5	1150*1400*1300mm	300
100L	90	90	6~8	2.2	1250*1800*1550mm	800
200L	180	180	6~8	3	1450*2000*1550mm	1000
400L	360	360	6~8	4	1650*2200*1550mm	1200
600L	540	540	6~8	5.5	1850*2500*1750mm	1500
800L	600	600	8-12	7.2	1900*2500*2100mm	1600
1000L	750	750	8-12	11	1950*2500*2400mm	1800
1500L	1200	1200	8-12	11	2600*2500*2350mm	2200

More pictures of Pharmaceuticals Dry Powder 3D Mixer Mixing Machine
About our company
Gofine Machine, establish in 2010, located in Longgang Developed Zone of Xingyang City, Henan, China, specially engaged in producing fertilizer production machinery, animal feed machinery, waste recycling machinery and trading in building machinery and food machinery and wood machinery; we have heavy standardization industrial plants with area 60000 square meter, bring advanced large metal processing equipment, including the 10 sets CNC machining center, 3sets laser cutting machine, and other equipment reaching total 100 sets; we have get known by the ISO9001-20001 certification and CE certification; Welcome you to know us more on our machine and our technology.
We take "Quality First and Customer Supreme" as our business philosophy, adhere business idea"Honesty and Excellence" and spirit of "Practical and Innovative", act "Attitude is everything" to our business and each client.
FAQ of Pharmaceuticals Dry Powder 3D Mixer Mixing Machine
Q: How do you ensure the quality of your products?
A: Generally, our equipment are the most durable type our customers at home or abroad. With our experienced quality control team, we are trying to offer you the product with best quality. However, we do recognize that there do have small amount of the product which may got faulty or damaged for different reasons;
Q: How does your after-sale service work if the product got damaged?
A: In the guarantee time 24 months, our general after-sale service is changing the damaged parts, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: wear parts do not include.)
If you have any further question, please feel free to contact me freely!
Contact information
Merry
Manager
Zhengzhou Gofine Machine Equipment Co., Ltd
Xingyang Town, Zhengzhou
Tel/Fax: 0086-371-65002168
Mob: +86 13736016895

---
