US$280.00-335.00
|
1 Piece
(MOQ)
|
Basic Info.
Maximum Lifting Height
130 Meters
Certification
CE, ISO9001:2000, SGS, TUV, GS
Running Mode
with Trolley
Power Supply
220-690V, 3 Phase or Single Phase
Working Group
ISO:M4, Fem:1am
Protection Grade
IP54 for Hoist Body, IP55 for Pendant
Hooks
Heat Forging + Heat Treatment
Warranty
2 Years for Mechanical, 1 Year for Electric Parts
Transport Package
Wood Box
Specification
80*60*58 cm
Production Capacity
50000 Sets/Year
Product Description

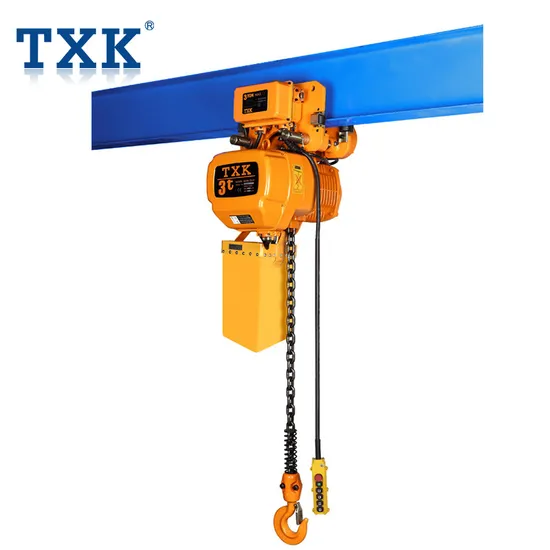

TXK Factory 3000kg Motorized Electrical Winch for Sale
Characteristics:
0.5~50 ton lifting capacity With upper hook (fixed) or with trolley Single/Double speed option Shell: aluminum alloy Chain: high quality G80 Chain container: canvas / iron Gear & chain wheel: alloy steel + heat treatment Hooks: heat forging+heat treatment Chain diameter: 6.3~11.2mm (as per different capacities) Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed), Standard chain length: 3m (can be customized) Power specification:200~690V,50/60HZ,3 Phase Safe voltage:24V/36V/48V Button switch:2/4/6/8 buttons option Insulation grade:F class Protection class: IP55 Working group:M4 Working temperature: -40ºC ~ +40ºC OEM acceptable Customized logo acceptable Package: plywood case Warranty: 2 years for mechanical parts, 1 year for electric parts
| Single Speed | Technical Parameters |
| Model | SSDHL |
| 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S |
| Capacity (t) | 0.5t | 1t | 1.5t | 2t | 2.5t | 3t | 5t |
| Lifting Speed (m/min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Power (Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
| Rotation Speed (r/min) | 1440 |
| Insulation Grade | F |
| Power Supply | 3P 220V ~ 690V |
| Control Voltage | 24V/36V/48V |
| No. of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. of Load Chain | ø6.3 | ø7.1 | ø10.0 | ø10.0 | ø7.1 | ø11.2 | ø11.2 | ø10.0 | ø7.1 | ø11.2 |
| Net Weight (Kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
| Dual Speed | Technical Parameters |
| Model | SSDHL |
| 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D |
| Capacity (t) | 0.5t | 1t | 1.5t | 2t | 2.5t | 3t | 5t |
| Lifting Speed (m/min) | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.41.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 |
| Motor Power (Kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 |
| Rotation Speed (r/min) | 2880/960 |
| Insulation Grade | F |
| Power Supply | 3P 220V ~ 690V |
| Control Voltage | 24V/36V/48V |
| No. of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. of Load Chain | ø6.3 | ø7.1 | ø10.0 | ø10.0 | ø7.1 | ø11.2 | ø11.2 | ø10.0 | ø7.1 | ø11.2 |
| Net Weight (Kg) | 54 | 74 | 144 | 150 | 86 | 148 | 159 | 168 | 102 | 184 |
Company Profile TXK was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience. We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001:2008 certified company, our products are GS, CE certified, serving all spheres of industry in the world.
Our brand TXK is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products. With our professional R&D team, we are able to provide customization services with the most professional quality and never stop meeting the highest standard of safety.
TXK will never stop being as an innovation manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage.
>>
