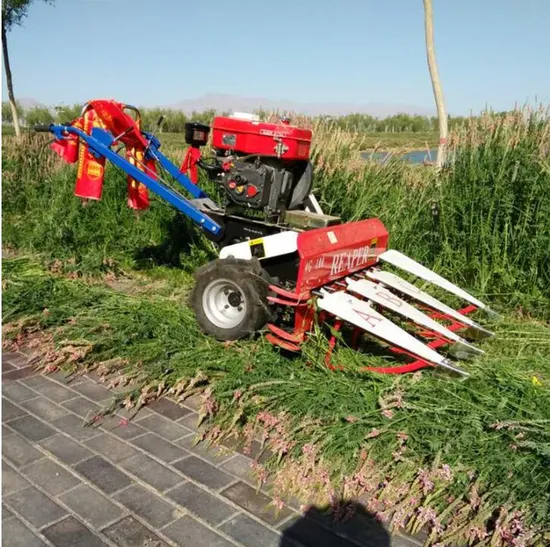

Handheld Diesel Power Tiller Tractor Harvester Small Animal Grass Corn Reaper Cut Harvester Machine

US$1,200.00
3-19 Sets
US$995.00
20+ Sets

Basic Info.

Model NO.
bs-10
Application
Cotton, Rice, Wheat, Soybean
Power Source
Diesel
Harvest method
Cutting
Drive Type
Vee belt
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture, Livestock, Aquaculture
Warranty
1y
Word Width
120-150cm
Transport Package
Wood Box
Trademark
HLF
Origin
China
Production Capacity
2000PCS/Month

Product Description

4G-120/150 self-propelled harvester
Item
Index
Model
4GL 120A
4GL 150A
Type of Cutting Table
Standing-Typed
Standing-Typed
Cutting Width (mm)
1200
1500
Min Cutting Height (mm)
≥50
≥50
Working rows
4
5
Placing Type
Sidewise & Banded Placed
Sidewise & Banded Placed
Productivity (M2)
2000-2600square meters per hour
2000-2600square meters per hour
Overall Dimensions (mm) (L*W*H)
2200*1600*1100
2200*1900*1100
Total Weight (Kg)
Around 210
Around 230
Matched Power (kw) diesel engine
3.64 (4.5 horsepower) (choice 1)
3.64 (4.5 horsepower) (choice 1)
Teeth Space (mm)
127
127
Running Speed of Crank (r/min)
550
550
Diameter of Star Wheel (mm)
280
280
Working Speed (km/h)
2.6~3.6
2.6~3.6
Chain Speed (m/s)
2.24
2.24
Number of Operator
1
1
