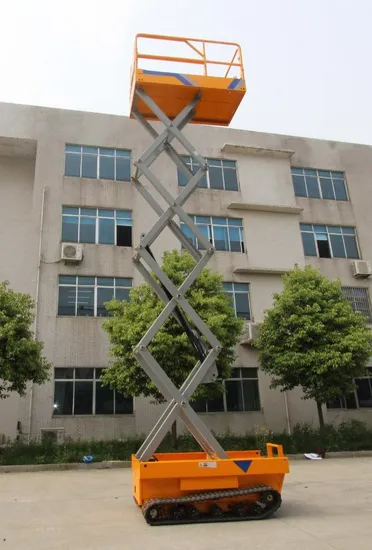

Gtjz12 Mobile Manlift 12m Platform 320kg Electric Scissor Lift Self-Propelled Vertical Lift Hydraulic Man Lift/Cherry Picker for Equipment Leasing

US$3,000.00-7,800.00 1 SET (MOQ)

Basic Info.

Model NO.
GTJZ12
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Fctory
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Easy Operation
Certification
CE
Max. Working Height
14m
Max.Platform Height
12m
Loading Capacity
500kg
Extension Load
113kg
Max. Climbing Ability
25%
Weight
2860kg
Color
Customization
Transport Package
Nude Packing/Wooden Packaging
Specification
2.48m*1.19m*2.55m
Trademark
TITECO
Origin
China
HS Code
8428909090
Production Capacity
3000 Pieces/Year

Packaging & Delivery

Package Size
2.48cm * 1.15cm * 1.97cm
Package Gross Weight
2900.000kg

Product Description

Technical Specification
Model GTJZ06 GTJZ08 GTJZ10 GTJZ12 GTJZ14
Max. Working Height 8.00m 10.00m 12.00m 14.00m 16m
Max.Platform Height 6.00m 8.00m 10.00m 12.00m 14m
Loading Capacity 320kg 500kg 500kg 320kg 320kg
Extension Load 113kg 113kg 113kg 113kg 113kg
Platform Dimension 2.27x1.11x1.11mm 2.27×1.11x1.11m 2.26×1.13×1.1m 2.29×1.13×1.1m 2.67×1.13
Overall Size
(Guardrail not folded)
2.48×1.15×2.22m 2.48×1.15×2.22m 2.48×1.15×2.42m 2.48×1.19×2.55m 2.81×1.25×2.75m
Overall Size
(Guardrail folded)
2.48×1.15×1.68m 2.28×1.15×1.68m 2.48×1.15×1.97m 2.48×1.19×2.10m 2.81×1.25×2.1m
Platform Extension 0.9m 0.9m 0.9m 0.9m 0.9m
Min. Ground Clearance 0.1/0.02m 0.1/0.02m 0.1/0.02m 0.1/0.02m 0.1/0.02m
Wheelbase 1.89m 1.89m 1.89m 1.89m 1.89m
Turning Radius
(Inner/outer)
0/2.2m 0/2.2m 0/2.2m 0/2.2m 0/3m
Lifting/Driving Motor 24V/3.3Kw 24V/3.3Kw 24V/4.5Kw 24V/4.5Kw 24V/3.3Kw
Lifting Speed 3-5m/min 3-5m/min 3-5m/min 3-5m/min 3-5m/min
Driving Speed (Standard) 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h
Driving Speed (Lifting) 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h
Battery 4×6V/230ah 4×6V/230ah 4×6V/225ah 4×6V/200ah 4×12V/150ah
Charger 24V/30A 24V/30A 24V/30A 24V/30A 24V/30A
Max. Climbing Ability 25% 25% 25% 25% 25%
Max. Slope 2°/3° 2°/3° 1.5°/3° 1.5°/3° 1.5°/3°
Tire Φ381×127mm Φ381×127mm Φ381×127mm Φ381×127mm Φ590×190mm
Total Weight 2040kg 2130kg 2580kg 2860kg 3600kg

Introduction:
GTJZ Series is one of the relatively advanced aerial work equipment, can walk, when the highest height potholes provides maximum safety protection system, operation automaticity, extremely safe ground clearance, make indoor possible operation, strong, reliable, easy maintenance, standard parts, no trace tires, slope, alarm, dual wheel speeds, free turning device, charging indicator, timer, emergency descent system. Is one of the relatively advanced aerial work equipment, can walk, when the highest height potholes provides maximum safety protection system, operation automaticity, extremely safe ground clearance, make indoor possible operation, strong, reliable, easy maintenance, standard parts, no trace tires, slope, alarm, dual wheel speeds, free turning device, charging indicator, timer, emergency descent system.
Our scissor lift has high safety and durable quality, providing longer service time and minimum downtime. As a professional manufacturer of scissors sets in northern China, we have provided thousands of scissors sets to the Philippines, Brazil, Peru, Chile, Argentina, Bangladesh, India, Yemen, Saudi Arabia, United Arab Emirates, Malaysia, Thailand and other countries.
Features:
Shipping:
