Best Price Quality and Best Price for Du Vacuum Belt Filter

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
DU2-DU75
Type
Solid-Liquid Separation
Object
Chemical
Separation Mode
Solid-Liquid Separation
Operating Type
Continuous and Intermittent
Installation
Horizontal or Vertical
Pressure
-0.1-1MPa
Condition
New
After-Sales Service
Ok
Control
Dcs or PLC
Filter of The Benlt
Natural Rubber
Efficiency
High and Little Vacuum Leak
Design
Can According to Customer′s Need
Transport Package
Wooden Box
Specification
ASME, EU standard, GB
Trademark
DC
Origin
Hebei, China
HS Code
8421299090
Production Capacity
500 Sets Per Year

Product Description

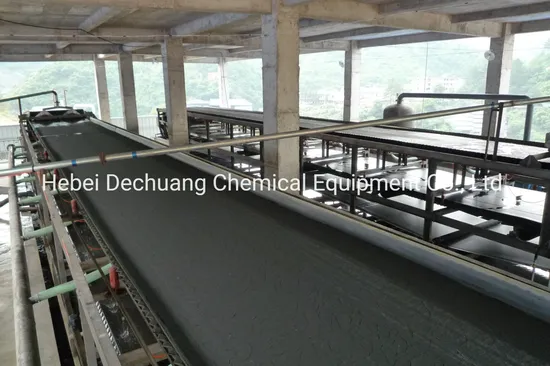

DU rubber continuous vaumm belt filter
Specifications
1)Easy installation and operation
2)High automation level
3)Both spot and remote control
4)High filtering efficiency
Features:
1. Modularized design is for easy installation and transportation.
2. High auto degrees: Consecutive auto feeding, filtering, washing, dewatering, discharging, cloth cleaning improves production efficiency.
3. Fast filter speed: Large particles will settle at the lower layer while small particles upper layer when material goes through sedimentation area. Reasonable structure of filter cake ensures low resistance of liquid for fast filter of thin layer.
4. Convenient filter technology: Cake thickness, water vol., counter current decantation stages, vacuum degree, filter speed can be adjusted for optimistic effect.
5. Fine decantation effect: Even and thorough multi-stage advection or counter current decantation makes collection and reuse of mother liquor and washing liquor separately.
6. DSC for control system ensures site control and remote control automatically.
DU2.7/680 680 2.7 0.06 4-6 2.2 7.93×1.48×1.65
DU4/680 4 0.06 6-8 3 9.93×1.48×1.65
DU5.4/680 5.4 0.06 8-12 4 11.93×1.48×1.65
DU7.8/1300 1300 7.8 0.06 12-16 3 9.93×2.1×1.65
DU 10.4/1300 7.8 0.06 15-20 4 11.93×2.1×1.65
DU 13.0/1300 13.0 0.06 20-27 5.5 13.93×2.1×1.65
DU 14.4/1800 1800 14.4 0.06 23-30 4 11.93×2.6×1.65
DU 18.0/1800 18.0 0.06 27-36 5.5 13.93×2.6×1.65
DU 21.6/1800 21.6 0.06 32-42 7.5 15.93×2.6×1.65
DU 16/2000 2000 16 0.06 24-32 4 11.93×2.8×1.65
DU 20/2000 20 0.06 30-40 5.5 13.93×2.8×1.65
DU 24/2000 24 0.06 36-50 7.5 15.93×2.8×1.65
DU 28/2000 28 0.06 42-60 7.5 17.93×2.8×1.65
DU 25/2500 2500 25 0.06 40-60 5.5 13.93×3.3×1.65
DU 30/2500 30 0.06 45-75 7.5 15.93×3.3×1.65
DU 35/2500 35 0.06 52-87 7.5 17.93×3.3×1.65
DU30/3000 3000 30 0.06 45-75 5.5 13.93×3.8×1.65
DU36/3000 36 0.06 54-100 7.5 15.93×3.8×1.65
DU42/3000 42 0.06 63-120 7.5 17.93×3.8×1.65
DU70/3500 3500 70 0.06 105-175 11 23.93×4.3×1.65
DU91/3500 91 0.06 140-225 15 29.93×4.3×1.65
DU105/3500 105 0.06 150-265 18.5 33.93×4.3×1.65
DU104/4000 4000 104 0.06 150-265 15 29.93×4.8×1.65
DU120/4000 120 0.06 180-300 18.5 33.93×4.8×1.65
DU152/4000 152 0.06 230-375 22 41.93×4.8×1.65
