US$90,000.00-95,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
1.0~1.5m³
Certification
CE, ISO9001: 2000
Diesel Engine
Cummins 6btaa5.9-C178
Transport Package
Nude Packing
Specification
9520x2800x3030mm
Trademark
SINOMACH / CHANGLIN
Production Capacity
100 Sets/Month
Product Description

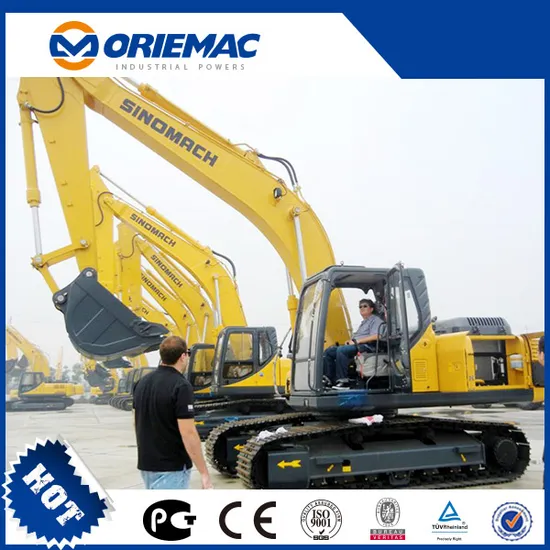

ZG3255LC-9C 25.5ton Crawler Excavator
Characteristics
1. Our hydraulic crawler excavator is equipped with a reliable original Cummins engine.
2. It has a reliable hydraulic system with imported pumps, motor and valves.
3. Its electronic monitoring and control system comes with a multifunctional LCD display that shows information.
4. With a stepped-up device, the hydraulic excavator is applicable to mines.
5. Strengthened X-shaped box structure
Specifications of ZG3255LC-9C Hydraulic Excavator
| Model | ZG3255LC-9C |
| Length×Width×Height(mm) | 9840×3180×3180 |
| Operating weight (Kg) | 25000 |
| Rated bucket capacity(m3) | 1.2 |
| Max.digging depth(mm) | 6995 |
| Max.digging radius(mm) | 10258 |
| Max.digging height(mm) | 9612 |
| Max.dumping height(mm) | 6690 |
| Bucket digging force(KN) | 162 |
| Stick digging force(KN) | 123 |
| Gradient capacity(%) | 70 |
| Diesel engine | Cummins 6BTAA5.9-C178 |
| Rated output(KW) | 133 |
Photos:
