Metal Gear Grinding Blade Equipment

Product Description

Min. Order Quantity: 20 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Place of Origin: China (Mainland) Brand Name: G&G
Packaging & Delivery
Packaging Details: PACKED IN CARTON BOX
Delivery Detail: 30-45DAYS
Specifications
easy operation
high quality

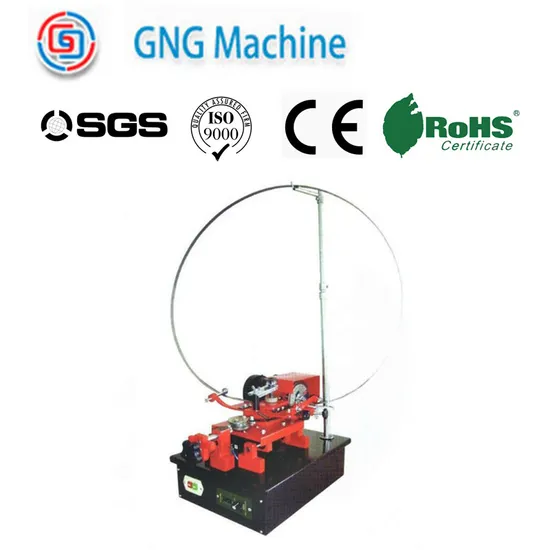

Gear grinding machine
for grind gears or threads
Gear grinding machine
Features:
1. Easy operation: after our training, even people without experience can operate the machine easily.
2. Easy adjusting: the cutting angle, tooth profile, depth of notch is adjustable.
3. High accuracy
4. The tooth is sharp and durable after grinding.
5. You can easy adjuste the machine according to the saw blades' thickness.
6. Machine's head can rotate up and down easily.

GEAR GRINDING MACHINE
Description		GEAR GRINDING MACHINE
TECHNICAL SPECIFICATIONS
FOB Qingdao(USD)		254.00
Grinding blade' s width		6-75mm
Grinding range between teeth		2-30mm
Grinding speed		0-63teeth/min
Grinding motor		220V 50Hz 250W
Feed motor		220v 50Hz 15W
Grinding wheel size		Φ 150 Φ 32x10mm
Grinding wheel speed		2800rpm

---
