One-Piece Cast Iron High Rigidity CNC Lathe

Product Description

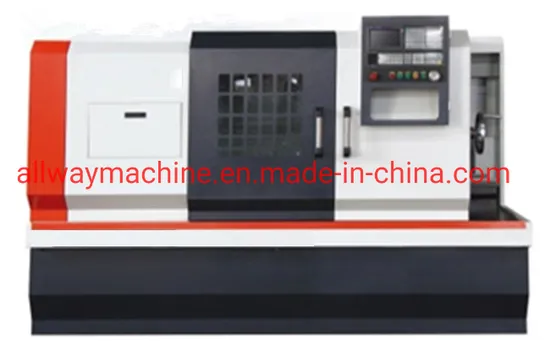

ClK6185E ONE-PIECE CAST IRON CNC LATHE
ClK6185E ONE-PIECE CAST IRON CNC LATHE SPECIFICATION Introduction and use This machine is a half closed loop CNC lathe machine, with a centralized automatic lubrication device, 4-station or 6-station electric tool post, once programming input can automatically realize the mechanical parts of the cylindrical, inner hole, thread, complex surface machining.The machine using CNC control system, control 2 axis movement at the same time, there is movement, linear and circular interpolation, thread cutting, all kinds of cutting cycle, coordinate system seted, the tool tip R and cutter offset compensation, and so on fully repair and auxiliary functions .Program compiled USES the international ISO standard, can manually entered program use the key on the panel or Input by data communication interface. Main structure 1)Lathe bed is horizontal flat structure, main components such as bed and bed seat adopt high strength material, resin sand casting, enough aging treatment; Wide bed and bed foot, horizontal layout, is very high stability and rigid; Guide way precision grinding processing after high frequency quenching treatment, to ensure the stability of the machine for using a long time.
2) Spindle adopt gear speed change mechanism, equipped with high-precision spindle special bearing two-point support structure, so the spindle can achieve overload processing, with high precision, strong rigidity, small thermal deformation, smooth running, low noise characteristics significant characteristics .
3) Longitudinal/transverse direction movement shaft adopts servo motor directly drive, precision ball screws transfer, pulse encoder position detection feedback half- closed loop control systems, every shaft response is fast, high precision, long service life. Lead screws choose special ball bearings of contact angle 60°, can withstand the high axial load, make sure the rigidity and precision of the feeding transmission device. Machine moving parts (slide carriage, cross slide carriage) paste PTFE, reduce the frictional resistance of machine and weaken the low-speed crawling, improve the service life of the machine tool.
4) Adopt automatic intermittent electric lubrication pump, realize centralized quantitative automatic lubrication.
5)Horizontal flat bed double sliding door half-protective structure, configuration stationary type hand wheel, convenient maintenance ,and convenience for set tool, flexible operation, convenient hoisting artifacts, water proof, dustproof.

	ClK6185E
Max. swing over bed	850mm
Max. swing over cross slide	480mm
Max. processing length	1000/1500//2000/3000/4000mm
Spindle transmission type	three-gear, step-less in gear
Spindle speed steep	10-85, 40-350, 110-850
Spindle nose	C11
Spindle bore	Φ105mm
Spindle taper	120 1:20
Spindle motor	11KW
Max. tool-post travel	X:500mm
Ball screw dia. and pitch	X:Φ32*5 Z:Φ50*10
Rapid feed speed	X:4000mm/min Z:5000mm/min
Position accuracy	X:0.025mm Z:0.03mm
X, Y and X axes repeatability	X:0.01 mm Z:0.015mm
Processing accuracy	IT6-IT7
Workpiece surface roughness	Ra1.6
Tailstock sleeve dia.	Φ100mm
Tailstock sleeve travel	250mm
Tailstock sleeve taper	MT6#
Tool-post	4 station electric turret
Tool-post at optional	6 station or 8 station electric turret
Toolbar section size	32*32mm
Controller	GSK980TDC
Controller at optional	KND, FANUC, Siemens

2.ClK6185E CNC LATHE MACHINE FEATURES
guide width 600mm
higher stability one-piece machine bed
3 gear spindle speed, stepless in gear
higher rigidity pedestal
wider layer board
integrated automatic lubrication system
3. ClK6185E CNC LATHE MACHINE USAGE
This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
4.ClK6185E CNC LATHE MACHINE STANDARD ACCESSORIES
GSK980TDC or Siemens 808d NC system
11kw common main motor and frequency changer
4 station electric turret
400mm manual chuck
manual tailstock
automatic integrated lubrication system
coolant system
lighten system
half cover
5.ClK6185E CNC LATHE MACHINE OPTIONAL ACCESSORIES
Fanuc 0I mate TD NC system
6 station or 8 station electric turret
steady rest
follow rest
11/15 kw servo motor
15 kw inverter motor
15" domestic thru-hole hydraulic chuck
15" Taiwan thru-hole hydraulic chuck
Full enclosed cover

---
