US$9,400.00-21,400.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
ISO 9001:2000
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Transport Package
Cover with Plastic Film
Specification
1800*1200*1620mm
Production Capacity
50 Set/Month

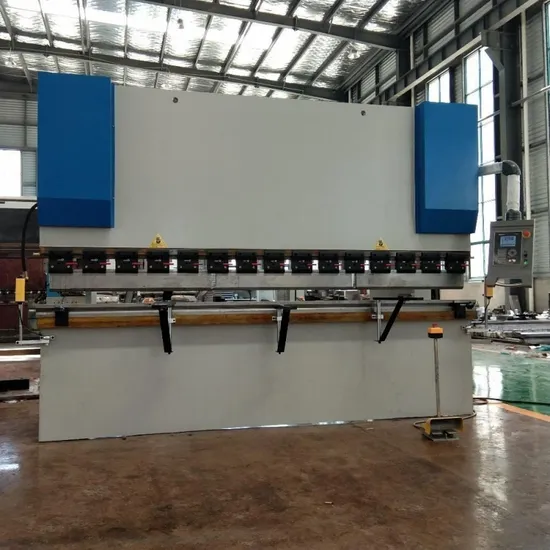

Product Description
Standard Equipment
Optional Equipment
Optional Control SystemDelem is a well-known manufacturer of industrial controls for press brakes, machines used in metalworking to bend and form sheet metal.
The Delem controller is an electronic control system that manages and automates the operation of the press brake. You can choose a different control system.
Details Images• safe and fast tool change.
• substantial improvement in time consumption and related costs.
• Secure against tool falling down.
• Available in manual, pneumatic, and hydraulic models.
• Mounting: Simply from the bottom into the housing, tighten-DONE!
• Easy to mount on your press brake. Modifying the cation of the press brake is not necessary. HYCULES BGA-2 BackGauge:
Sheet Metal Press Brake 2-Axis CNC BackGauge with X, R-Axis
Hiwin Ball screws and linear guide on X, R-axis
Axis X speed 500 mm/s.
Manual Z1, Z2-axis with HIWIN linear guide
Mechanical accuracy ± 0.01 mm.
Fingers with double stop and micrometric adjustment. Proportional valve:
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.
Advantage:
The frequency response (response frequency) is higher and can be as high as 200Hz.
It can continuously and proportionally control the pressure and flow of the hydraulic system, control the position, speed, and force, and reduce the impact of pressure changes.
Closed-loop control, signal feedback.
Original German imported products, longer service life. Product Parameters
| Model | Bending Pressure (KN) | Bending Length (mm) | Uprights Distance (mm) | Throat Depth (mm) | Slider Stroke (mm) | Max. Opening Height (mm) | Y-axis Downward Speed (mm/sec) | Y-axis Back Stroke Speed (mm/sec) | Bending Angle Precision | Max. X-axis Distance (mm) | Workpiece Straightness (mm) | Backgauge Accuracy (mm/m) | Main Motor (KW) | Length*Width*Height (mm) | Weight (kg) |
| 30T/1600 | 300 | 1600 | 950 | 230 | 100 | 320 | 80 | 70 | <40 | 300 | 0.5 | 0.05 | 3 | 1800*1200*1620 | 2000 |
| 40T/1600 | 400 | 1600 | 950 | 230 | 100 | 320 | 80 | 70 | <40 | 300 | 0.5 | 0.05 | 3 | 1800*1200*1820 | 2500 |
| 40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 80 | 70 | <40 | 600 | 0.5 | 0.05 | 5.5 | 2200*1200*1900 | 2750 |
| 40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 80 | 70 | 0.5 | 600 | 0.5 | 0.05 | 5.5 | 2500*1200*1900 | 3000 |
| 50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 80 | 70 | 0.5 | 600 | 0.5 | 0.05 | 5.5 | 2500*1200*2000 | 3400 |
| 63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 80 | 70 | 0.5 | 600 | 0.5 | 0.05 | 5.5 | 2500*1300*2210 | 4000 |
| 63T/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 80 | 70 | 0.5 | 600 | 0.5 | 0.05 | 5.5 | 3200*1300*2210 | 4800 |
| 80T/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 80 | 70 | 0.5 | 600 | 0.5 | 0.05 | 7.5 | 2500*1400*2300 | 5000 |
| 80T/3200 | 800 | 3200 | 2560 | 320 | 100 | 350 | 80 | 70 | 0.5 | 600 | 0.5 | 0.05 | 7.5 | 3200*1500*2300 | 6000 |
| 80T/4000 | 800 | 4000 | 3200 | 320 | 100 | 350 | 80 | 70 | 0.5 | 600 | 0.5 | 0.05 | 7.5 | 4000*1500*2400 | 7000 |
| 100T/2500 | 1000 | 2500 | 1990 | 320 | 120 | 350 | 80 | 70 | 0.5 | 600 | 0.5 | 0.05 | 7.5 | 2500*1600*2400 | 6000 |
| 100T/3200 | 1000 | 3200 | 2600 | 320 | 150 | 400 | 80 | 70 | 0.5 | 600 | 0.5 | 0.05 | 7.5 | 3200*1600*2600 | 6800 |
| 100T/4000 | 1000 | 4000 | 3200 | 320 | 150 | 400 | 90 | 82 | 0.5 | 600 | 0.5 | 0.05 | 7.5 | 4000*1600*2600 | 8000 |
| 125T/2500 | 1250 | 2500 | 1990 | 320 | 150 | 400 | 90 | 82 | 0.5 | 600 | 0.5 | 0.05 | 11 | 2500*1600*2600 | 6000 |
| 125T/3200 | 1250 | 3200 | 2600 | 320 | 150 | 400 | 90 | 82 | 0.5 | 600 | 0.5 | 0.05 | 11 | 3200*1600*2600 | 7000 |
| 125T/4000 | 1250 | 4000 | 3200 | 320 | 150 | 400 | 90 | 82 | 0.5 | 600 | 0.5 | 0.05 | 11 | 4000*1600*2600 | 8500 |
| 160T/2500 | 1600 | 2500 | 1990 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 2500*1700*2700 | 8800 |
| 160T/3200 | 1600 | 3200 | 2580 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 3200*1700*2700 | 10000 |
| 160T/4000 | 1600 | 4000 | 2900 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 4000*1700*2800 | 11000 |
| 160T/5000 | 1600 | 5000 | 3900 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 5000*1900*3100 | 13500 |
| 160T/6000 | 1600 | 6000 | 4900 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 6300*1900*3200 | 18500 |
| 200T/2500 | 2000 | 3200 | 1990 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 3200*1950*2800 | 10000 |
| 200T/3200 | 2000 | 3200 | 2480 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 3200*1950*2800 | 11000 |
| 200T/4000 | 2000 | 4000 | 2900 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 4000*1950*2800 | 12500 |
| 200T/5000 | 2000 | 5000 | 3900 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 5000*1950*3000 | 14000 |
| 200T/6000 | 2000 | 6000 | 4900 | 320 | 200 | 460 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 11 | 6000*1950*3300 | 20000 |
| 250T/3200 | 2500 | 3200 | 2450 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 18.5 | 3250*2000*3200 | 18500 |
| 250T/4000 | 2500 | 4000 | 2900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 18.5 | 4000*2000*3400 | 20000 |
| 250T/5000 | 2500 | 5000 | 3900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 18.5 | 5000*2000*3400 | 23000 |
| 250T/6000 | 2500 | 6000 | 4900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 18.5 | 6000*2000*3400 | 27000 |
| 300T/3200 | 3000 | 3200 | 2450 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 22 | 3200*2000*3450 | 20500 |
| 300T/4000 | 3000 | 4000 | 2900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 22 | 4000*2000*3450 | 22000 |
| 300T/5000 | 3000 | 5000 | 3900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 22 | 5000*2000*3450 | 25000 |
| 300T/6000 | 3000 | 6000 | 4900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 22 | 6000*2000*3450 | 28500 |
| 400T/3200 | 4000 | 3200 | 2400 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 30 | 3200*2180*3400 | 22500 |
| 400T/4000 | 4000 | 4000 | 2900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 30 | 4000*2180*3400 | 25000 |
| 400T/5000 | 4000 | 5000 | 3900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 30 | 5000*2180*3500 | 29000 |
| 400T/6000 | 4000 | 6000 | 4900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 30 | 6000*2180*3800 | 34000 |
| 500T/4000 | 5000 | 4000 | 2900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 45 | 4050*3500*3700 | 36000 |
| 500T/5000 | 5000 | 5000 | 3900 | 400 | 250 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 45 | 5050*3500*3700 | 42000 |
| 500T/6000 | 5000 | 6000 | 4900 | 400 | 320 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 45 | 6050*3500*3700 | 54000 |
| 600T/4000 | 6000 | 4000 | 2900 | 400 | 320 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 55 | 4050*4500*3700 | 44000 |
| 600T/5000 | 6000 | 5000 | 3900 | 400 | 320 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 55 | 5050*4500*3700 | 51000 |
| 600T/6000 | 6000 | 6000 | 4900 | 400 | 320 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 55 | 6050*4500*3700 | 60000 |
| 600T/7000 | 6000 | 7000 | 5900 | 400 | 320 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 55 | 8050*4500*3700 | 66000 |
| 600T/8000 | 6000 | 8000 | 6900 | 400 | 320 | 590 | 90 | 86 | 0.5 | 600 | 0.5 | 0.05 | 55 | 9050*4500*3700 | 72000 |
Delivery/Package
Factory View
FAQ Company Profile
Exhibition
>>
