Product Details
Product Description
Product Description

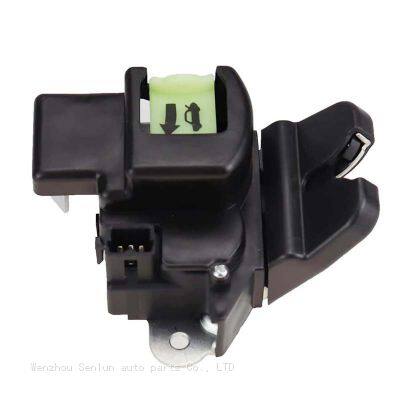

1. Part IdentificationComponent: Trunk lock/latch assembly. This includes the mechanical latch, lock cylinder (if equipped), and possibly an integrated actuator for power locking/unlocking.
Function: Secures the trunk/tailgate and interfaces with the vehicle’s central locking system (if power-operated).
2. CompatibilityHyundai Models:
Hyundai Elantra (e.g., 2017–2023)
Hyundai Sonata (e.g., 2015–2023)
Hyundai Tucson (2016–2021)
Hyundai Kona (2018–2023)
Hyundai Santa Fe (2019–2023)
Key Notes:
Confirm compatibility using your VIN or consult a Hyundai dealer, as design changes may occur between model years.
SUVs (e.g., Tucson, Santa Fe) may use this part for the tailgate latch.
3. Where to BuyOEM Dealership: Best for guaranteed compatibility (use your VIN to order).
Online Retailers:
RockAuto
eBay (search 81230A7030 for new or used OEM parts).
Aftermarket Options: Brands like Dorman or MANDO may offer equivalents (cross-check part numbers).
4. Installation TipsDIY Feasibility: Moderate difficulty. Requires accessing the trunk interior panel and disconnecting electrical connectors (if power-operated).
Steps:
Disconnect the vehicle battery to avoid electrical shorts.
Remove the trunk interior trim to access the latch.
Unbolt the old latch and disconnect wiring/actuator (if applicable).
Install the new latch and reassemble.
Guides: Search for model-specific tutorials on YouTube (e.g., “Hyundai Sonata trunk latch replacement”).
5. Troubleshooting Common IssuesTrunk won’t open/close:
Check for obstructions in the latch mechanism.
Test the actuator (if power-operated) by listening for a clicking sound.
Inspect fuses (e.g., trunk fuse in the cabin/engine bay).
Key won’t turn: Lubricate the lock cylinder with graphite powder.
Electrical failure: Verify wiring harness connections for corrosion/damage.
>>
