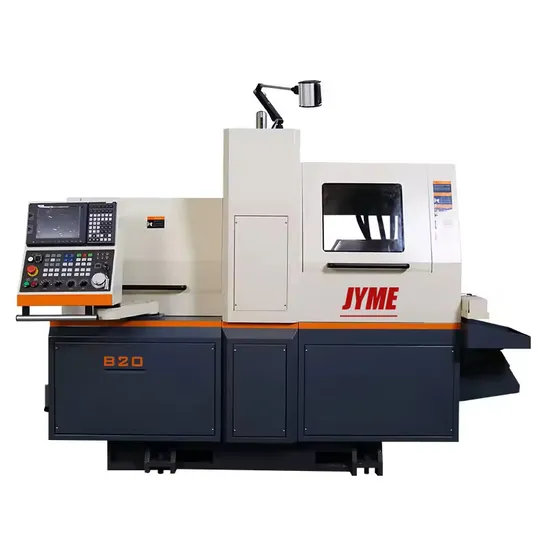

5 Axis CNC Lathe Machine B20 Dual Spindle Swiss Type CNC Lathe for Pin

Product Description

Product Descriptions
Main Features: 1. Using the counter spindle and the back tool post, front and back processing can be performed at the same time. 2. Equipped with 3-axis lateral power head, lateral rigid tapping, front rigid tapping, back rigid tapping. 3. Equipped with no guide sleeve device, which is most suitable for high precision machining of short workpieces.
4. Adjust the chuck with the clamping force of the main shaft and the back shaft, which can easily clamp fine and precise parts Fixed guide bushes and linked guide bushes have better benefits.
5.The main shaft oil-cooled electric spindle has no dead angle cooling at high speed, and it has more uniform heat dissipation and stronger performance than ordinary air-cooled electric spindle.
6. This machine adopts absolute operation, no need to return to the original point on and off, saving time and labor and labor. Uninterrupted power supply for 24 hours, high efficiency and labor saving.
Application: 1. It is capable of turning and milling combined processing. 2. It is a high-precision, wide-ranging and practical processing equipment.
3. This type of machine tool is suitable for large-scale and large-scale "slender shaft" parts with relatively large length and diameter, and "small" and "abnormal" parts.
4. Variety, high-precision processing tasks, its processing range is widely applicable to various high-tech industries such as medical, aviation, aerospace, automobiles, motorcycles, communications, refrigeration, optics, home appliances, microelectronics, electronics, watches, mobile phones, etc. 5. Compound processing of precision, multi-batch, complex shape shaft parts and precision small parts.
Parameters:

Specificaton	B20
Spindle
Max. bar throught hole	Φ20mm
Spindel through diameter	Φ21mm
Spindle center height from the ground	1050mm
Motorized/Sevrvo spindle revolving speed	10000/5000r/min
Power of Motorized/Servo spindle	7.5kw/4kw
Sub spindle
Max. clamping dia.	Φ20mm
Spindle speed	0-5000r/min
Motor power	2kw
CNC system
LNC	LNC-T6800D
Min. setting unit	0.001mm
Min. moving unit X	0.0005mm
Min. moving unit Z	0.001mm
Cutting speed	1-4000mm/min
X rapid travel speed	20000mm/min
Y rapid travel speed	20000mm/min
Z rapid travel speed	20000mm/min
Stroke
X stroke	140mm (Dia. value)
Y stroke	300mm
Z stroke	300mm
X axis servo motor power	1kw
Y axis servo motor power	1kw
Z axis servo motor power	1kw
Guideway	Linear guideway
X1 stroke	500mm (Dia. value)
Z1 stroke	200mm
X1 servo motor power	1kw
Z1 servo motor power	1kw
Power
Rated voltage	3 phase AC 380V
Rated frequency	50HZ
Total input power	17kw
Cooling system
Cutting motor power	0.18kw
Capacity of coolant container	150L
Lube system
Motor power	25w
Capacity	1.5L
Live tool
Side live tool	4 nos.
Power	1kw
ER collet	ER11/ER16 (each 2 nos.)
Front live tool (optional)	3 nos.
Front live tool for sub spindle(optional)	4 nos.
Tool post
12*12 squre tool+Φ20 boring tool	6 nos.+4 nos.
Others
Machine size L*W*H	2090*1200*1800mm
Weight	2100kg

Machine details

---
